Texas Instruments provides a layout guide in the ADS8472 datasheet, which recommends a 4-layer PCB with a solid ground plane, and careful routing of analog and digital signals to minimize noise and crosstalk. Additionally, it's recommended to use a low-ESR capacitor for the AVDD pin and to decouple the DVDD pin with a 0.1uF capacitor.
The ADS8472IRGZT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. Texas Instruments provides a calibration procedure in the datasheet, as well as a software tool to simplify the process.
The ADS8472IRGZT has a maximum sampling rate of 1 MSPS, but this can be limited by the system clock frequency, the conversion mode, and the output data rate. The device can operate in various modes, including continuous conversion, single-shot conversion, and burst mode, which can affect the maximum sampling rate.
The ADS8472IRGZT outputs 16-bit digital data in a serial format. The data can be read using a microcontroller or an FPGA, and can be processed using software or hardware. Texas Instruments provides a software development kit (SDK) that includes example code and a user guide to help with data processing and analysis.
The power consumption of the ADS8472IRGZT depends on the operating mode, sampling rate, and output data rate. The device has a typical power consumption of 35 mW at 1 MSPS. To reduce power consumption, the device can be operated at a lower sampling rate, or in a low-power mode. Additionally, the power-down mode can be used to reduce power consumption when the device is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8472IRGZT Overview

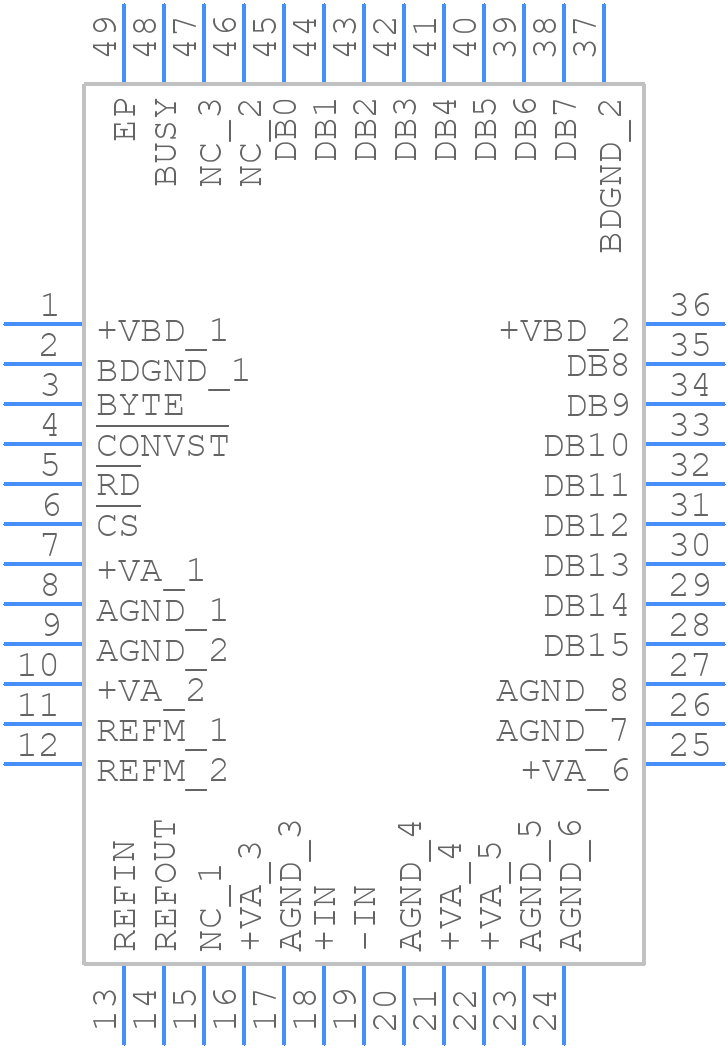

Use the download button to access the ADS8472IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
