Texas Instruments provides a recommended layout and routing guide in the ADS8482 datasheet, which includes guidelines for placing components, routing traces, and minimizing noise. Additionally, the TI website has a PCB layout example and a layout checklist that can be used as a reference.
The ADS8482IBRGZT does not require calibration in the classical sense. However, it's recommended to perform a system-level calibration to ensure accurate measurements. This can be done by applying a known input signal and adjusting the gain and offset of the ADC to match the expected output. TI provides an application note (SLAA544) that outlines a calibration procedure.
The ADS8482IBRGZT has a maximum sampling rate of 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the ADC's conversion time, and the interface protocol used. TI recommends using a clock frequency of at least 20 MHz to achieve the maximum sampling rate.
The ADS8482IBRGZT is specified to operate from a 2.7V to 5.5V supply voltage. While it's possible to use it with a 3.3V supply voltage, the device's performance may be affected. TI recommends using a 5V supply voltage for optimal performance. If a 3.3V supply voltage is used, the device's input range and accuracy may be reduced.
The ADS8482IBRGZT outputs 16-bit digital data in a serial format. The data can be handled using a microcontroller or a digital signal processor. TI provides example code and application notes that demonstrate how to interface with the ADS8482IBRGZT and handle the digital output data.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8482IBRGZT Overview

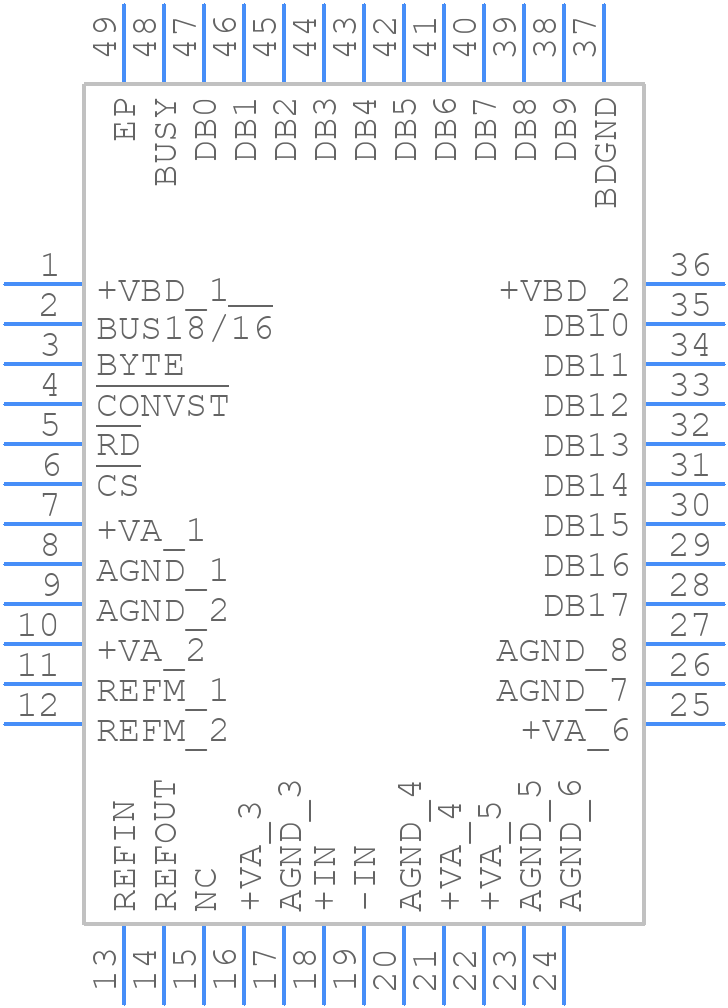

Use the download button to access the ADS8482IBRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
