Texas Instruments provides a layout guide in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, separating analog and digital signals, and minimizing trace lengths and vias. Additionally, it's essential to follow the recommended pinout and component placement to minimize noise and ensure optimal performance.
The ADS8482IRGZT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then adjusting the internal calibration registers to achieve the desired accuracy. Texas Instruments provides a calibration procedure in the datasheet, and it's recommended to follow this procedure carefully to achieve the best possible accuracy.
The maximum sampling rate of the ADS8482IRGZT is 250 kSPS, but it can be adjusted based on the application requirements. The power consumption of the device increases with the sampling rate, so it's essential to balance the sampling rate with power consumption requirements. Texas Instruments provides power consumption data in the datasheet for different sampling rates.
The ADS8482IRGZT has a serial interface that can be connected to a microcontroller or FPGA. The recommended communication protocol is SPI, but the device also supports other protocols such as I2C and UART. Texas Instruments provides interface guidelines and example code in the datasheet and application notes to help with the interface design.
The ADS8482IRGZT has a maximum junction temperature of 150°C, and it's essential to ensure that the device operates within this temperature range to maintain reliability. Thermal management considerations include providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Texas Instruments provides thermal management guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8482IRGZT Overview

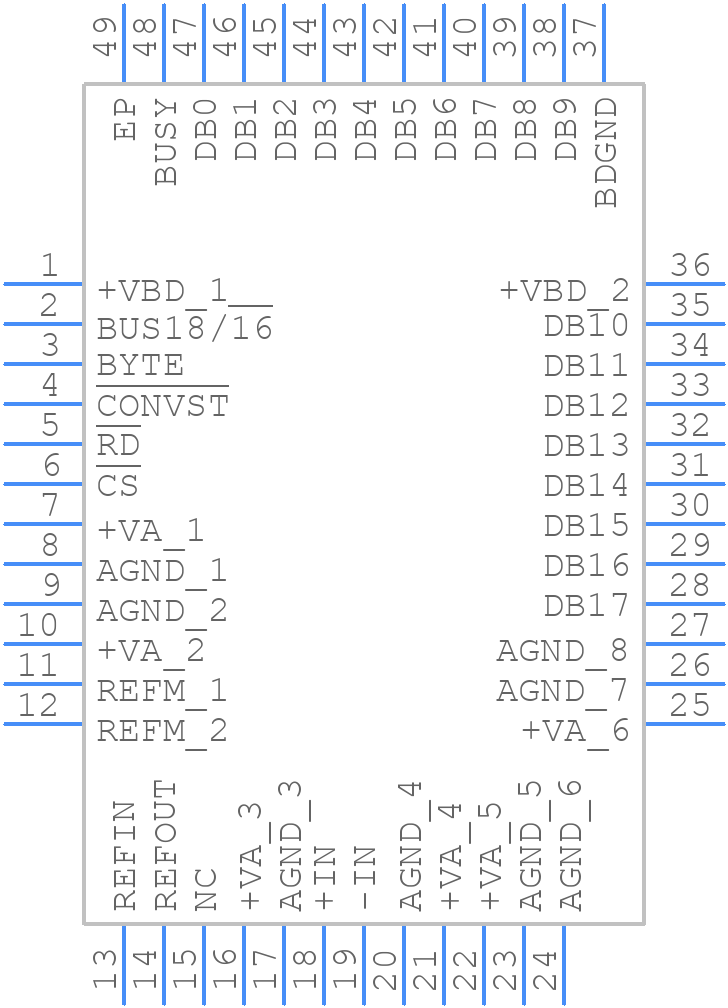

Use the download button to access the ADS8482IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
