A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, use a low-ESR capacitor for the AVDD pin and a 0.1uF capacitor for the DVDD pin. Refer to the TI application note 'PCB Layout Guidelines for Switching Regulators' for more information.
To optimize performance in high-temperature environments, ensure good thermal dissipation by using a heat sink or a thermally conductive material. Reduce the power consumption by optimizing the clock frequency and using the power-down mode when not in use. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The recommended input capacitance is 1uF to 10uF, and the recommended output capacitance is 1uF to 22uF. However, the optimal capacitance values may vary depending on the specific application and operating conditions. It's recommended to experiment with different capacitance values to find the optimal value for the specific design.
To troubleshoot issues with the ADS8506IBDW, start by verifying the input voltage, clock frequency, and output voltage. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for oscillations or noise on the output voltage. Consult the TI application note 'Troubleshooting Switching Regulators' for more information.
Yes, the ADS8506IBDW can be used in battery-powered devices. To optimize power consumption, use the power-down mode when not in use, reduce the clock frequency, and optimize the output voltage to the minimum required for the application. Additionally, consider using a low-dropout regulator (LDO) or a low-power mode to reduce power consumption.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8506IBDW Overview

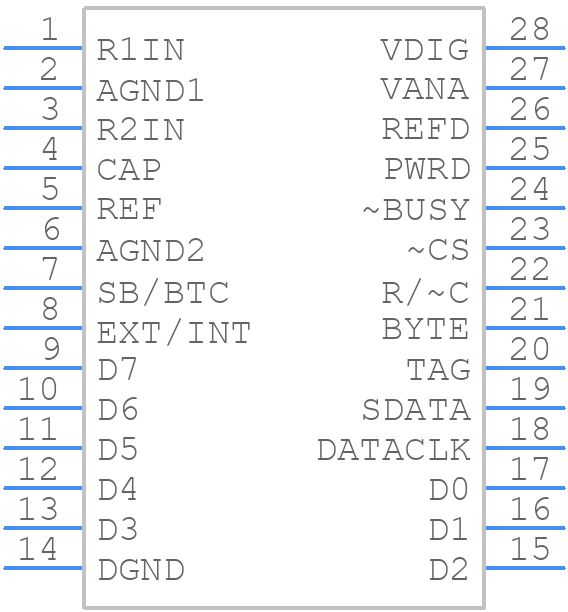

Use the download button to access the ADS8506IBDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS85,
or try a keyword search, such as Analog to Digital Converters
