ADS8506IDWR - Texas Instruments

Description: Single Channel Single ADC SAR 40ksps 12-bit Parallel/Serial 28-Pin SOIC T/R

Download ADS8506IDWR Model

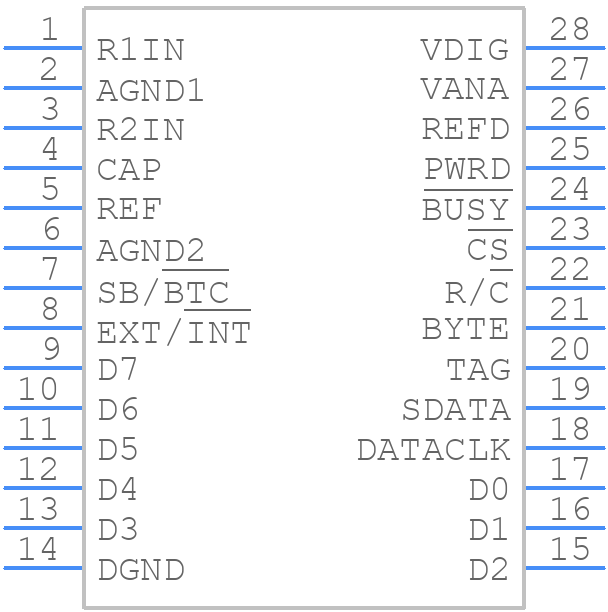

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8506IDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
ADS8506IDWR - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

ADS8506IDWR Details

  • Manufacturer Part Number:

    ADS8506IDWR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    15 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.022%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.04 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADS8506IDWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide in the datasheet, but it's recommended to follow a star-grounding approach, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals, and use a low-impedance source for the analog input.
  • The ADS8506IDWR has an internal calibration circuit, but it's recommended to perform an external calibration using a known input voltage and adjusting the offset and gain registers accordingly. The calibration process should be done at the operating temperature range and with the same power supply voltage as the final application.
  • The maximum sampling rate of the ADS8506IDWR is 200 kSPS, but it can be adjusted through the clock frequency and the number of conversions per cycle. Higher sampling rates increase power consumption, so it's essential to balance the sampling rate with power consumption requirements.
  • The ADS8506IDWR has an internal overvoltage protection circuit, but it's recommended to add external protection circuitry, such as a voltage divider or a clamp circuit, to prevent damage from overvoltage or undervoltage conditions. Additionally, consider adding a buffer amplifier or a voltage limiter to protect the analog input.
  • The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. During power-down, the sequence should be reversed. It's essential to ensure that the clock signal is stable and valid before powering up the device.
