Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals and avoid crossing digital signals over analog signals. Also, use a common mode filter or ferrite bead to filter out high-frequency noise.
Optimization depends on the specific application. However, in general, ensure the input signal is within the ADC's input range, use a suitable sampling rate, and consider using the ADC's built-in gain and offset calibration features. Additionally, consider using an external reference voltage and a low-pass filter to reduce noise.
The maximum clock frequency for the ADS8509IBDW is 20 MHz. However, the actual clock frequency used may be limited by the specific application and the system's clocking requirements.
The ADS8509IBDW outputs 16-bit parallel data. Ensure your system can handle this data format and consider using a FIFO or buffer to handle data transfer. You may also need to implement data formatting and error checking depending on your system's requirements.
The ADS8509IBDW's power consumption is typically around 35 mW at 3.3V and 20 MHz clock frequency. To minimize power consumption, consider using the ADC's power-down mode, reducing the clock frequency, and optimizing the system's power management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8509IBDW Overview

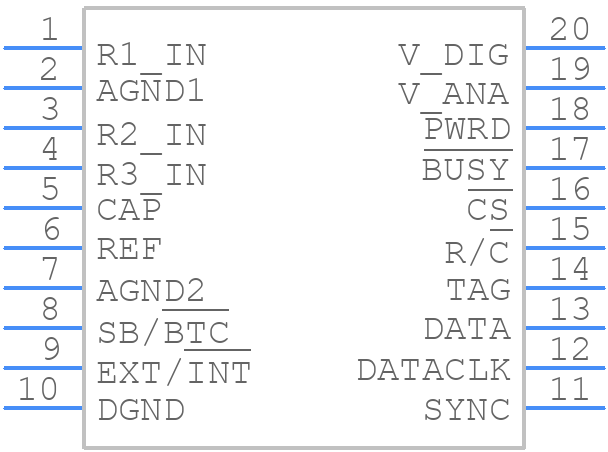

Use the download button to access the ADS8509IBDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS85,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
