A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
To optimize performance, use a low-noise power supply, minimize the distance between the ADC and the analog signal source, use a high-quality analog signal filter, and ensure proper grounding and shielding. Additionally, use the correct reference voltage and ensure the input signal is within the specified range.
The recommended clock frequency for the ADS8509IDBR is between 1 MHz and 20 MHz. The conversion rate is dependent on the clock frequency, with a higher clock frequency resulting in a faster conversion rate. However, a higher clock frequency also increases the power consumption.
The ADS8509IDBR outputs 16-bit data in a serial format. The output data is in two's complement format, with the most significant bit (MSB) first. The output data can be handled using a microcontroller or an FPGA, and can be processed further for analysis or storage.
The power consumption of the ADS8509IDBR is typically around 35 mW at a clock frequency of 10 MHz. To reduce power consumption, use a lower clock frequency, reduce the voltage supply, or use the power-down mode when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8509IDBR Overview

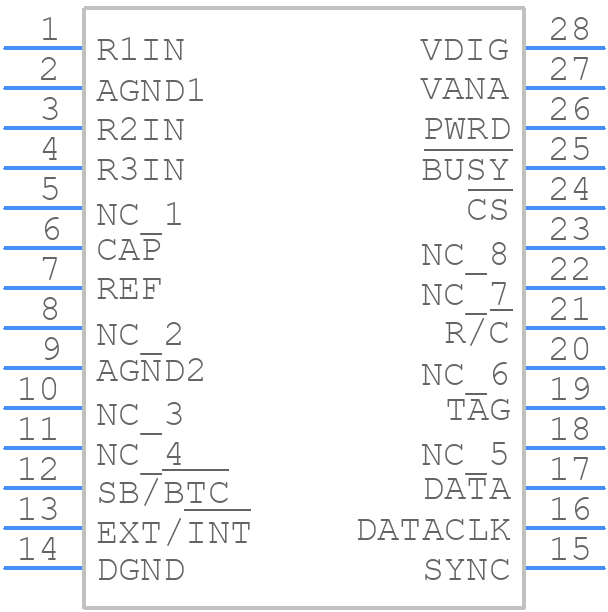

Use the download button to access the ADS8509IDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS85,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
