Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the ADC, and the digital signals should be routed away from the ADC. Additionally, the power and ground pins should be decoupled with 0.1uF and 10uF capacitors.
The ADS8513IDW has an internal calibration circuit that can be enabled by setting the CAL pin high. The calibration process takes approximately 100ms, and it is recommended to perform calibration after power-up and after any changes to the reference voltage or clock frequency.
The maximum sampling rate of the ADS8513IDW is 200kSPS. The power consumption increases with the sampling rate, and at maximum sampling rate, the power consumption is approximately 35mW. However, the power consumption can be reduced by reducing the sampling rate or by using the power-down mode.
The ADS8513IDW outputs 16-bit data in a serial format, with the most significant bit (MSB) first. The output data is in two's complement format, and it can be read using a serial interface such as SPI or I2C. The output data can be processed using a microcontroller or a digital signal processor.
The ADS8513IDW has a temperature range of -40°C to 125°C, and the performance may vary with temperature. The gain and offset of the ADC can be affected by temperature, and it is recommended to use an external temperature sensor to monitor the temperature and compensate for any variations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8513IDW Overview

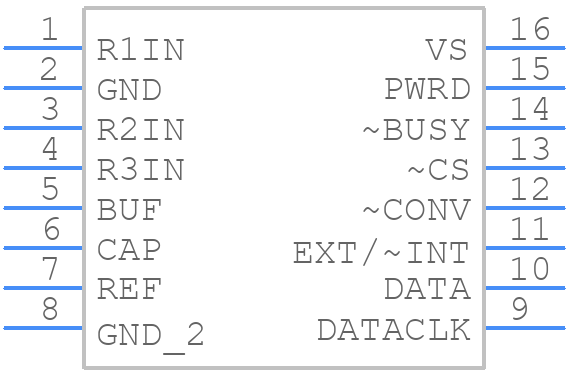

Use the download button to access the ADS8513IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS85,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
