ADS8515IDBR - Texas Instruments

Description: 16-BIT 250-KSPS SAMPLING CMOS ANALOG-TO-DIGITAL CONVERTER

Download ADS8515IDBR Model

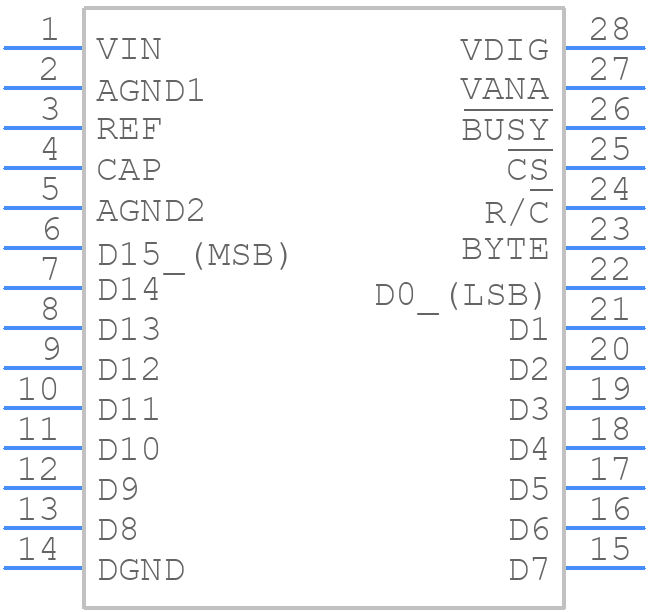

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8515IDBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
ADS8515IDBR - Texas Instruments  - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

ADS8515IDBR Details

  • Manufacturer Part Number:

    ADS8515IDBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADS8515IDBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide and PCB design checklist in the ADS8515IDBR datasheet and application notes. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and achieve optimal performance. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To prevent signal degradation and EMI, it's recommended to use a low-impedance transmission line, such as a 50-ohm microstrip or stripline, to route the high-speed digital outputs. Additionally, consider using a termination resistor, such as a 50-ohm resistor, at the receiving end of the signal trace. This helps to reduce signal reflections and ringing.
  • The recommended power-up sequence for the ADS8515IDBR is to apply the analog power supply (AVDD) before the digital power supply (DVDD). This ensures that the internal analog circuitry is powered up before the digital circuitry, which helps to prevent damage or malfunction. Additionally, it's recommended to power up the device slowly, with a ramp-up time of at least 1 ms, to prevent inrush currents.
  • The ADS8515IDBR requires calibration to achieve optimal accuracy and performance. Texas Instruments provides a calibration procedure in the datasheet and application notes, which involves adjusting the internal offset and gain registers. It's recommended to perform calibration at the system level, taking into account the specific application and operating conditions.
  • The recommended operating temperature range for the ADS8515IDBR is -40°C to 125°C. Temperature affects the device's performance, with increased temperature resulting in decreased accuracy and increased noise. It's essential to ensure that the device operates within the recommended temperature range and to consider temperature compensation techniques, such as using temperature sensors and calibration, to maintain optimal performance.
