- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADS8517IBPWR
- Part Number ADS8517IBPWR
- Manufacturer Texas Instruments
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW(R-PDSO-G28)
- Released Date Jan 12, 2017
- Last Modified Date May 10, 2025 7:36 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADS8517IBPWR Details
-
Manufacturer Part Number:
ADS8517IBPWR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SSOP
-
Package Description:
TSSOP-28
-
Pin Count:
28
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
ADS8517IBPWR Frequently Asked Questions (FAQs)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, use a low-ESR capacitor for the AVDD pin and a 0.1uF capacitor for the DVDD pin. Refer to the TI application note 'PCB Layout Guidelines for Switching Regulators' for more information.
-
To optimize performance in high-temperature environments, ensure good thermal dissipation by using a heat sink or a thermally conductive material. Reduce the power consumption by optimizing the clock frequency and using the power-down mode when not in use. Also, consider using a thermally enhanced package such as the QFN package.
-
The recommended input voltage range for the ADS8517IBPWR is 2.7V to 5.5V. Operating outside this range may affect the performance, including reduced accuracy, increased noise, and decreased linearity. Ensure the input voltage is within the recommended range to achieve optimal performance.
-
The ADS8517IBPWR outputs 16-bit data in a two's complement format. The data can be handled using a microcontroller or an FPGA. The recommended data format is SPI-compatible, with a clock frequency up to 20MHz. Ensure proper synchronization and data alignment to avoid data corruption.
-
The ADS8517IBPWR has an internal calibration circuit that is performed at power-up. However, if the device is used in an application that requires high accuracy, an external calibration procedure may be necessary. The calibration procedure involves applying a known input voltage and adjusting the offset and gain registers accordingly. The frequency of calibration depends on the application requirements, but it is recommended to perform calibration at power-up and after any changes to the system.
Trust Checks
System Verified
ADS8517IBPWR Overview

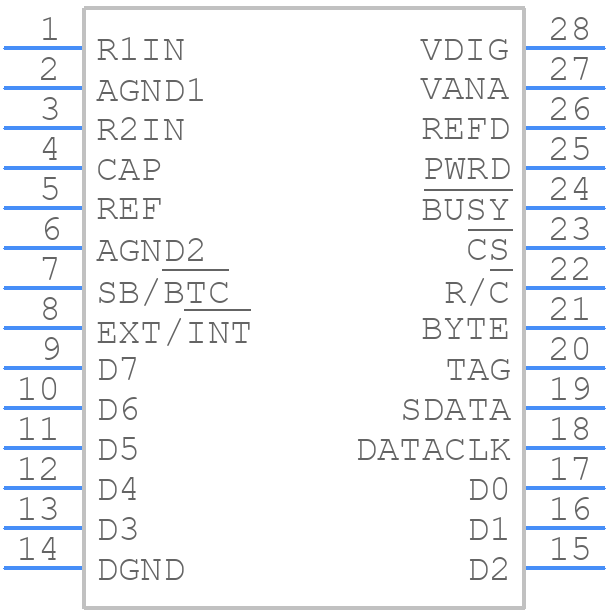

Use the download button to access the ADS8517IBPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS85,
or try a keyword search, such as Analog to Digital Converters
