ADS8517IDW - Texas Instruments

Description: Low-Power, 16-Bit, 200kSPS, +/-10V Bipolar Input SAR ADC With S/P Interface

Download ADS8517IDW Model

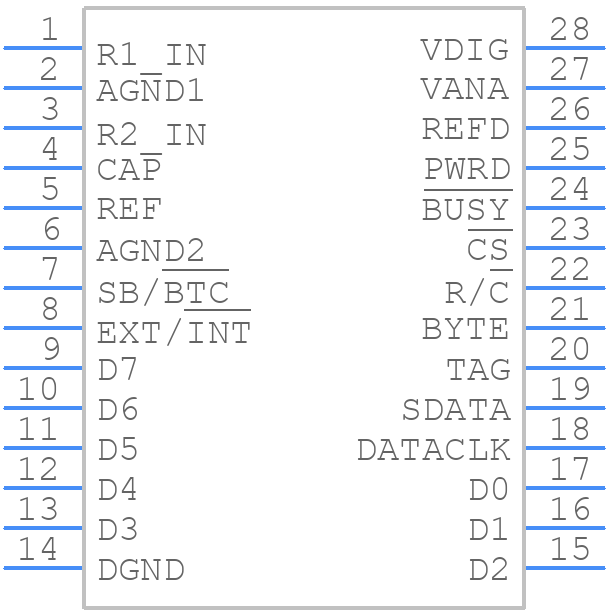

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8517IDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
ADS8517IDW - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

ADS8517IDW Details

  • Manufacturer Part Number:

    ADS8517IDW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    2.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADS8517IDW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide in the datasheet, but it's recommended to follow a star-grounding approach, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals, and use a low-impedance source for the reference voltage.
  • Use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. Route the clock signal as a differential pair, and use a clock buffer or repeater if the clock signal needs to be driven over a long distance. Also, ensure the clock signal is properly terminated to minimize reflections.
  • Use a low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling rate) to remove high-frequency noise and aliasing. A 2nd- or 3rd-order Butterworth or Bessel filter is recommended. The filter should be placed as close to the ADC input as possible to minimize signal degradation.
  • Follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim bits to achieve the desired accuracy. It's also recommended to perform calibration at multiple temperatures and supply voltages to ensure optimal performance over the entire operating range.
  • Power up the device in the following sequence: VCC, VREF, and then CLKIN. Power down in the reverse sequence. Ensure that the power supplies are stable and within the recommended operating range before applying the clock signal. Also, avoid applying an input signal before the device is fully powered up and stable.
