ADS8517IPW - Texas Instruments

Description: • 200-kHz Minimum Sampling Rate • Portable Test Equipment • 4-V, 5-V, and ±10-V Input Ranges with • USB Data Acquisition Module High-Impedance Input • Medical Equipment • ±1.5 LSB Max • Industrial Process Control INL • +1.5/–1 LSB Max/Min DNL, 16 Bits NMC • Digital Signal Processing • Instrumentation • ±2-mV Max BPZ, ±0.6 ppm/°C BPZ Drift • ±2-mV Max UPZ, ±0.15 ppm/°C UPZ Drift • 88.8-dB SINAD with 10-kHz Input The ADS8517 is a complete low-power, single 5-V • SPI™-Compatible Serial Output With

Download ADS8517IPW Model

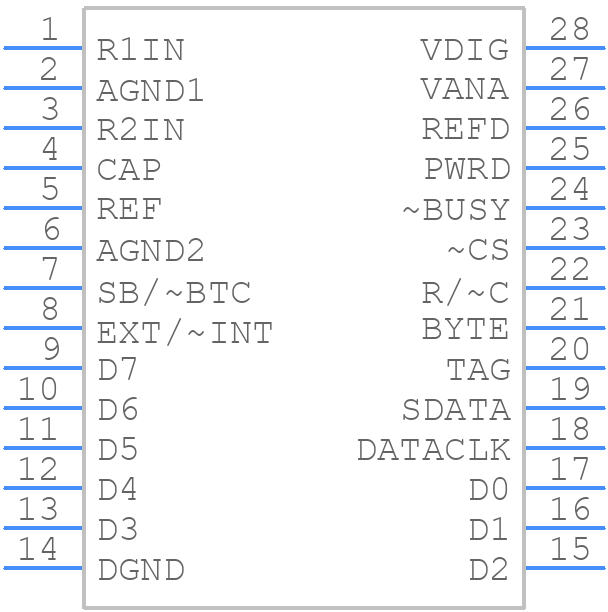

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8517IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
ADS8517IPW - Texas Instruments  - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

ADS8517IPW Details

  • Manufacturer Part Number:

    ADS8517IPW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    2.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS8517IPW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide in the application note SLAA523, which recommends a 4-layer PCB with a solid ground plane, and careful routing of analog and digital signals to minimize noise coupling. Additionally, it's recommended to use a low-ESR capacitor for the AVDD pin and to decouple the DVDD pin with a 0.1uF capacitor.
  • To optimize performance, ensure that the analog input signal is properly filtered and buffered, and that the reference voltage is stable and noise-free. Additionally, use a low-noise power supply, and consider using a ferrite bead or a pi-filter to reduce high-frequency noise on the power lines. Finally, ensure that the PCB layout is optimized for low noise and distortion.
  • The maximum sampling rate of the ADS8517IPW is 250kSPS, and it can be achieved by using the internal clock and setting the appropriate clock divider. However, increasing the sampling rate will also increase the power consumption, which can be estimated using the formula provided in the datasheet. At maximum sampling rate, the power consumption is approximately 35mW.
  • The ADS8517IPW can be interfaced with a microcontroller using the SPI interface. Key considerations for successful communication include ensuring that the microcontroller's SPI clock frequency is within the recommended range, using the correct SPI mode, and handling the conversion results correctly. Additionally, ensure that the microcontroller's digital output pins are not overloaded, and that the communication protocol is properly implemented.
  • The ADS8517IPW has a higher sampling rate and resolution compared to the ADS8513, and also has a lower power consumption. Additionally, the ADS8517IPW has a wider input range and a more flexible input configuration. However, the ADS8513 has a lower cost and is more suitable for lower-speed applications.
