Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's essential to follow good PCB design practices to minimize noise and ensure optimal performance.
To optimize the ADS8668IDBT's performance, consider the following: choose the correct input range and gain, select the appropriate clock frequency, and optimize the analog front-end circuitry. Additionally, ensure proper PCB layout, decoupling, and power supply filtering. Consult the datasheet and application notes for more information.
The ADS8668IDBT can achieve a maximum sampling rate of 250 kSPS. However, this rate may vary depending on the specific application, clock frequency, and system design. Consult the datasheet and application notes for more information on achieving optimal sampling rates.
The ADS8668IDBT outputs 16-bit digital data in a serial format. To handle the output data, you'll need to implement a digital interface, such as SPI or I2C, to communicate with a microcontroller or FPGA. Ensure proper synchronization and data formatting to accurately process the output data.
The ADS8668IDBT's power consumption varies depending on the operating mode and clock frequency. To minimize power consumption, consider using the device's power-down modes, reducing the clock frequency, and optimizing the analog front-end circuitry. Consult the datasheet for more information on power consumption and power-saving techniques.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8668IDBT Overview

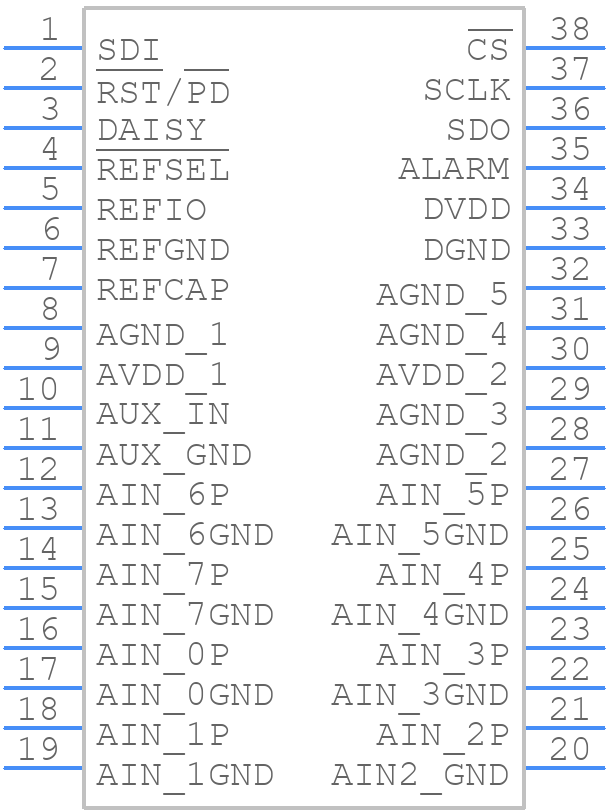

Use the download button to access the ADS8668IDBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS86,
or try a keyword search, such as Analog to Digital Converters
