Texas Instruments provides a layout guide and PCB design checklist in the ADS8674IDBTR datasheet and application notes. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and achieve optimal performance. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and placing decoupling capacitors close to the device.
The ADS8674IDBTR requires an external reference voltage (VREF) to operate. The recommended VREF range is 2.5V to 5V. When selecting a VREF, consider the desired full-scale input range, the required accuracy, and the noise tolerance. A low-noise, low-drift reference voltage is recommended, such as the Texas Instruments REF5025 or REF3030.
The ADS8674IDBTR outputs 16-bit or 14-bit digital data, depending on the mode. To handle the output data, use a microcontroller or FPGA with a compatible interface (e.g., SPI or parallel). Ensure proper synchronization and data alignment, and consider using a FIFO or buffer to handle data transfer. Additionally, consider using a digital filter or processing algorithm to optimize the data for your specific application.
The ADS8674IDBTR has an internal calibration mechanism, but it may require additional calibration for specific applications. Perform a system-level calibration by applying a known input signal and adjusting the gain and offset to achieve the desired performance. You can also use the device's built-in calibration registers to fine-tune the performance. Consult the datasheet and application notes for more information.
The ADS8674IDBTR has a maximum junction temperature (TJ) of 150°C. Ensure reliable operation by maintaining a safe operating temperature range (typically -40°C to 125°C). Use thermal design and simulation tools to estimate the device's temperature, and consider using heat sinks, thermal interfaces, or other cooling mechanisms if necessary. Also, follow proper PCB design and layout guidelines to minimize thermal resistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8674IDBTR Overview

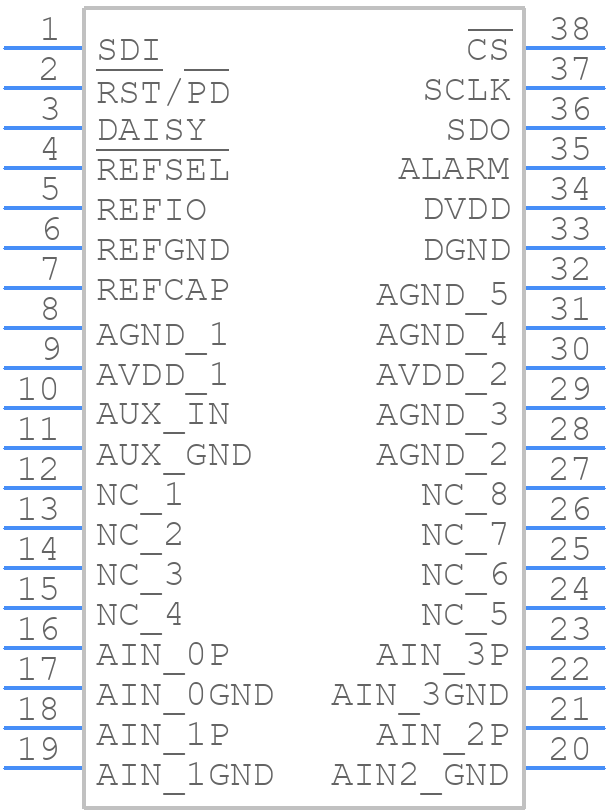

Use the download button to access the ADS8674IDBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS86,
or try a keyword search, such as Analog to Digital Converters
