Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the power supply with 0.1uF and 10uF capacitors.
Optimize the ADC's performance by selecting the correct gain, offset, and sampling rate for your application. Use the ADS8684's built-in calibration feature to minimize gain and offset errors. Also, consider using an external reference voltage and a low-noise power supply to improve performance.
Power up the device in the following sequence: AVDD, DVDD, and then the analog input voltage. Ensure that the power supplies are stable and within the recommended operating range before applying the analog input signal.
Use external voltage clamping devices, such as diodes or zener diodes, to limit the voltage on the analog input pins to within the recommended range. Also, consider using a voltage limiter or a resistive divider to attenuate the input signal.
Use a common clock signal to synchronize multiple ADS8684IDBTR devices. Ensure that the clock signal is clean and has a low jitter to maintain synchronization. Also, consider using a master-slave configuration to synchronize the devices.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8684IDBTR Overview

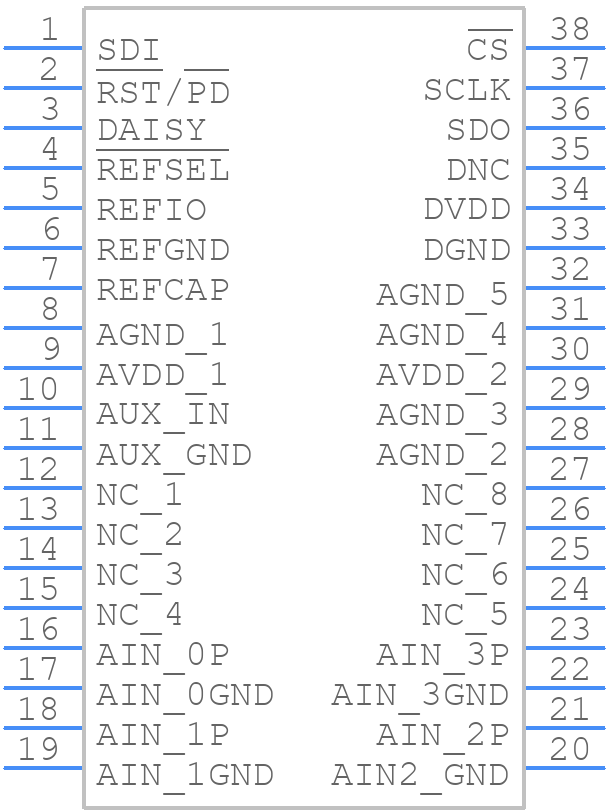

Use the download button to access the ADS8684IDBTR schematic symbol, PCB footprint, and 3D model.
