The recommended layout and routing for the ADS8688ATDBT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also important to keep the analog and digital power supplies separate and to use decoupling capacitors to reduce noise.
To optimize the performance of the ADS8688ATDBT in noisy environments, use shielding, filtering, and grounding techniques to reduce electromagnetic interference (EMI). Additionally, use a low-pass filter to remove high-frequency noise and consider using a differential amplifier to reject common-mode noise.
The maximum sampling rate of the ADS8688ATDBT is 500 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
The ADS8688ATDBT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. Refer to the datasheet for specific calibration procedures.
The power consumption of the ADS8688ATDBT depends on the operating mode, sampling rate, and supply voltage. Typically, the device consumes around 35 mW of power when operating at 500 kSPS with a 3.3 V supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8688ATDBT Overview

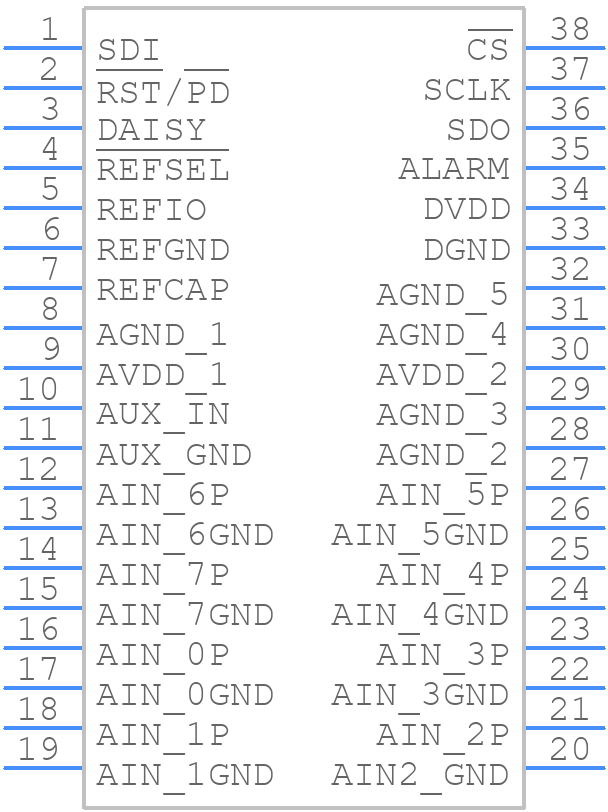

Use the download button to access the ADS8688ATDBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS86,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
