Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter or a ferrite bead to filter out high-frequency noise.
To optimize the ADC's performance, ensure that the input signal is within the specified range, and use the correct gain setting. Also, adjust the sampling rate and clock frequency according to your application's requirements. Additionally, consider using the ADC's built-in features such as the programmable gain amplifier and the digital filter to improve performance.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the ADC is properly initialized and configured before starting conversions.
The ADS8862IDRCR has built-in error detection mechanisms such as the BUSY signal and the ERROR pin. Use these signals to detect and handle errors such as overflow, underflow, and clock errors. Also, implement error handling routines in your firmware to recover from errors and ensure reliable operation.
The ADS8862IDRCR has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use thermal vias and heat sinks if necessary. Also, consider using thermal interface materials to improve heat transfer between the device and the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8862IDRCR Overview

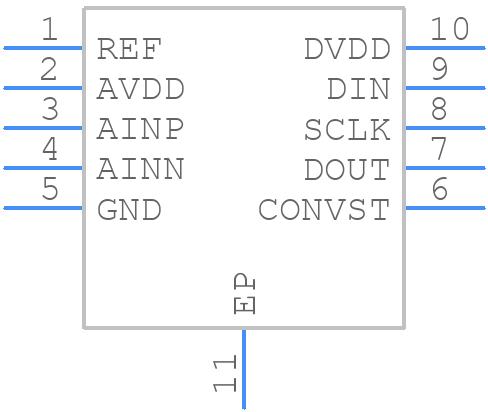

Use the download button to access the ADS8862IDRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS88,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
