ADS8864IDGSR - Texas Instruments

Description: ADS8864IDGSR

Download ADS8864IDGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

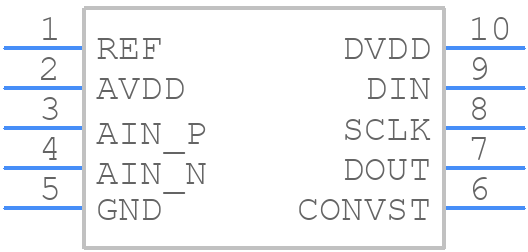

ADS8864IDGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8864IDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
ADS8864IDGSR - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

ADS8864IDGSR Details

  • Manufacturer Part Number:

    ADS8864IDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    1.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8864IDGSR Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the ADS8864IDGSR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the ADS8864IDGSR in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, ensure that the analog and digital grounds are properly separated and decoupled.
  • The maximum sampling rate of the ADS8864IDGSR is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the digital interface used.
  • The ADS8864IDGSR has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The gain and offset errors can be calculated and corrected using the calibration data.
  • The power consumption of the ADS8864IDGSR depends on the operating mode and the clock frequency. In normal operation, the device consumes around 35 mW of power. In power-down mode, the power consumption is reduced to around 10 μW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8864IDGSR Overview

Use the download button to access the ADS8864IDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS88, or try a keyword search, such as Analog to Digital Converters
