Texas Instruments provides a layout guide in the ADS8865IDRCT datasheet, which recommends a 4-layer PCB with a solid ground plane, and careful routing of analog and digital signals to minimize noise and crosstalk. Additionally, it's recommended to use a low-ESR capacitor for the AVDD pin and to decouple the DVDD pin with a 0.1uF capacitor.
The ADS8865IDRCT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. Texas Instruments provides a calibration procedure in the datasheet, as well as a software tool to simplify the process.
The maximum sampling rate of the ADS8865IDRCT is 1MSPS, but this can be limited by the system's clock frequency, the input signal bandwidth, and the settling time of the analog input. In practice, the achievable sampling rate may be lower, and it's recommended to consult the datasheet and application notes for more information.
The ADS8865IDRCT outputs 16-bit digital data in a serial format. The data can be read using a microcontroller or FPGA, and then processed and stored as needed. Texas Instruments provides example code and application notes to help with data handling and processing.
The power consumption of the ADS8865IDRCT depends on the operating frequency, voltage supply, and other factors. The typical power consumption is around 35mW at 1MSPS. To reduce power consumption, it's recommended to use a lower clock frequency, reduce the voltage supply, and use the device's power-down mode when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8865IDRCT Overview

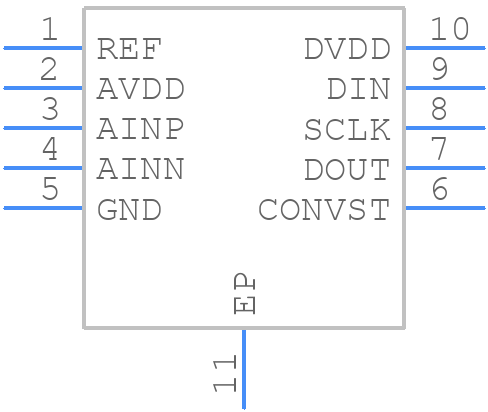

Use the download button to access the ADS8865IDRCT schematic symbol, PCB footprint, and 3D model.
