Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's also recommended to consult with a TI FAE or a PCB design expert for specific guidance.
To optimize performance, ensure that the ADC is properly decoupled, use a low-noise power supply, and minimize digital noise coupling. Also, use the recommended analog input filtering and buffering, and optimize the clock frequency and sampling rate for your specific application.
The maximum sampling rate of the ADS8866IDRCR is 500 kSPS, but this can be affected by the clock frequency, analog input frequency, and system noise. Consult the datasheet and application notes for specific guidance on achieving the highest sampling rates.
The ADS8866IDRCR outputs 16-bit data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. Ensure that your digital interface is properly synchronized with the ADC's clock and data output.
The ADS8866IDRCR has a typical power consumption of 35 mW at 500 kSPS. To reduce power consumption, consider using the ADC's power-down mode, reducing the clock frequency, or using a lower supply voltage (if possible).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8866IDRCR Overview

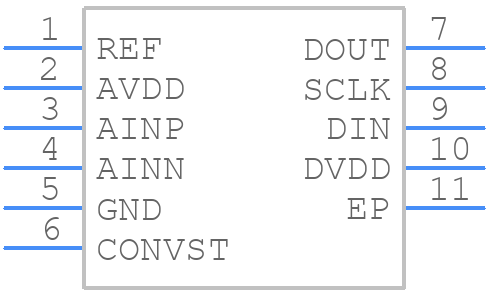

Use the download button to access the ADS8866IDRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS88,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
