ADS8887IDRCT - Texas Instruments

Description: 18-Bit, 100-kSPS, Serial Interface, microPower, Miniature, Truly-Differential Input, SAR ADC

Download ADS8887IDRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

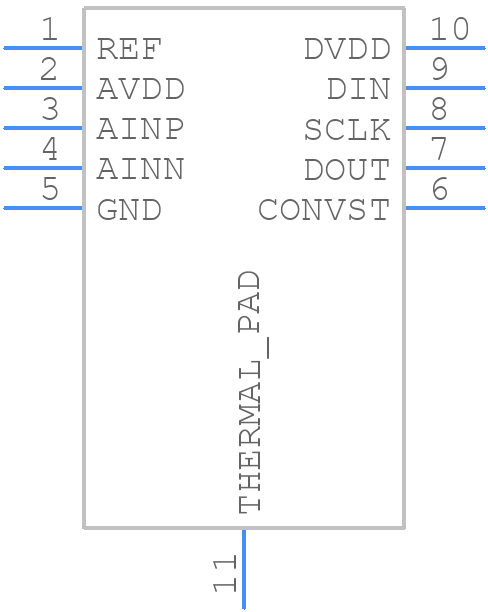

ADS8887IDRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8887IDRCT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC0010D
click to zoom
3D Models
ADS8887IDRCT - Texas Instruments - 3D model - Small Outline No-lead - DRC0010D
click to zoom

ADS8887IDRCT Details

  • Manufacturer Part Number:

    ADS8887IDRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    8.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0011%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8887IDRCT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8887IDRCT Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The ADS8887IDRCT datasheet provides a general guideline for the analog input filter. However, the optimal filter design depends on the specific application's frequency range, noise environment, and signal amplitude. Engineers can use tools like the TI FilterPro software or consult with TI's application engineers for customized filter design support.
  • Clock jitter can affect the ADS8887IDRCT's performance, particularly in high-frequency applications. It's essential to use a low-jitter clock source, and the datasheet recommends a clock jitter of less than 100 ps RMS. Engineers can also consider using a clock jitter attenuator or a phase-locked loop (PLL) to minimize clock jitter.
  • The ADS8887IDRCT requires calibration for optimal performance. Engineers can use the device's built-in calibration feature or implement an external calibration routine. The calibration process involves adjusting the device's offset and gain to match the specific application's requirements. TI provides calibration guidelines and example code in the ADS8887IDRCT datasheet and application notes.
  • The ADS8887IDRCT has a specific power-up sequence requirement to ensure proper operation. Engineers should power up the device in the following order: AVDD, DVDD, and then CLK. This sequence helps prevent latch-up and ensures the device is properly initialized. The datasheet provides more detailed information on the power-up sequence.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8887IDRCT Overview

Use the download button to access the ADS8887IDRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS88, or try a keyword search, such as Analog to Digital Converters
