The recommended layout and routing for the ADS8902BRGER involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS8902BRGER in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are separated and that the digital noise is not coupled into the analog circuitry.
The recommended power-up sequence for the ADS8902BRGER is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the analog circuitry is stable before the digital circuitry is powered up.
To handle the thermal management of the ADS8902BRGER, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, consider using a thermal interface material to improve the thermal conductivity between the device and the heat sink.
The recommended method for debugging the ADS8902BRGER involves using a logic analyzer or an oscilloscope to monitor the digital signals, and using a multimeter or an oscilloscope to monitor the analog signals. Additionally, consider using a debugging tool such as a JTAG debugger to access the internal registers of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8902BRGER Overview

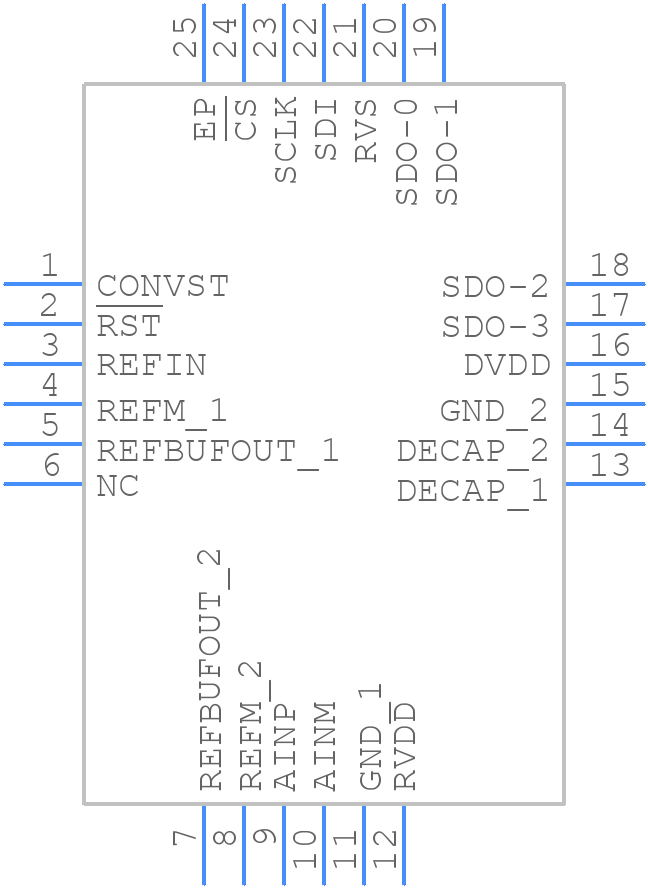

Use the download button to access the ADS8902BRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS89,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
