Description:Analog to Digital Converters - ADC ADS8912B 18-Bit, 500-KSPS, SAR ADC with internal reference buffer, internal LDO & multiSPI interface 24-VQFN -40 to 125
Texas Instruments provides a layout guide in the datasheet, but it's essential to follow additional best practices, such as keeping analog and digital traces separate, using a solid ground plane, and minimizing loop areas. A 4-layer PCB with a dedicated analog ground plane is recommended.
The internal reference voltage can be configured using the REFSEL pin. To ensure stability, it's crucial to decouple the REF pin with a 10nF capacitor and connect it to a quiet analog ground. Additionally, the REF pin should be bypassed with a 100nF capacitor to filter out high-frequency noise.
The optimal clock frequency for the ADS8912BRGET is between 1MHz to 20MHz. A higher clock frequency can improve throughput, but it may also increase power consumption and noise sensitivity. A lower clock frequency can reduce power consumption, but it may also decrease throughput. The optimal frequency depends on the specific application requirements.
The ADS8912BRGET outputs 16-bit data in a two's complement format. It's recommended to use a FIFO or a buffer to handle the data, and then process it using a microcontroller or an FPGA. The data should be shifted and scaled according to the gain and offset settings to obtain the correct analog value.
Common sources of noise and interference include digital noise, power supply noise, and electromagnetic interference. To mitigate these effects, use a clean power supply, decouple the analog and digital supplies, and use shielding and grounding techniques. Additionally, consider using a low-pass filter or a notch filter to remove high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8912BRGET Overview

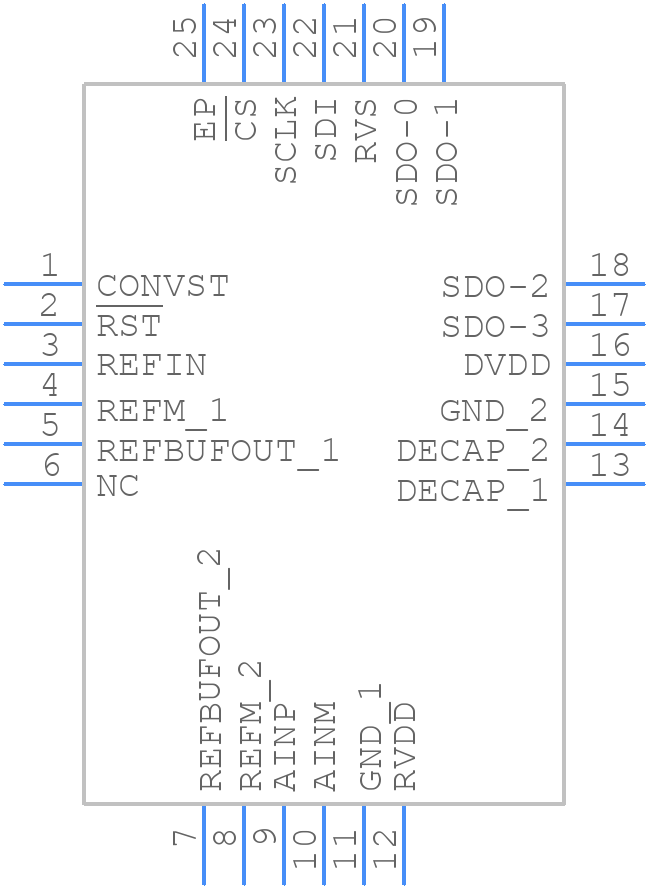

Use the download button to access the ADS8912BRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS89,
or try a keyword search, such as Analog to Digital Converters
