Texas Instruments provides a layout guide in the datasheet, but it's essential to follow best practices for high-speed analog design, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops. Additionally, use a 4-layer PCB with a dedicated analog power plane and a separate digital power plane.
Consult the ADS8914BRGET's datasheet and application notes for guidance on optimizing performance. Consider factors like input signal amplitude, frequency, and impedance, as well as the desired signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR). You may need to experiment with different input configurations, sampling rates, and digital filtering techniques to achieve optimal results.
When using multiple ADS8914BRGET devices or channels, ensure proper synchronization by using a common clock source and carefully managing the clock domain crossing. Use the device's built-in synchronization features, such as the SYNC pin, to align data across channels. Additionally, consider using a dedicated FPGA or microcontroller to manage the data acquisition and synchronization process.
The ADS8914BRGET outputs data in a 16-bit or 18-bit format, depending on the configuration. Ensure that your digital interface and processing system can handle the output data format and byte ordering. Implement error detection and correction mechanisms, such as CRC or checksums, to ensure data integrity. Consult the datasheet and application notes for specific guidance on data formatting and handling.
The ADS8914BRGET has a maximum junction temperature of 125°C. Ensure proper thermal management by providing adequate heat dissipation, using thermal vias, and keeping the device away from heat sources. Follow Texas Instruments' thermal design guidelines and consider using thermal simulation tools to optimize your design. Additionally, ensure that your system can operate reliably over the desired temperature range, considering factors like temperature coefficient and drift.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8914BRGET Overview

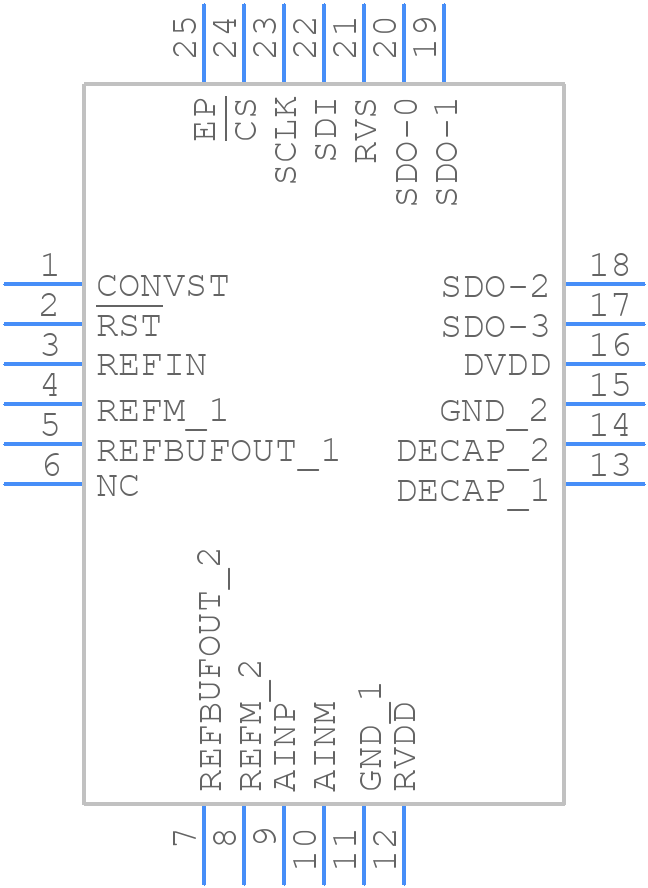

Use the download button to access the ADS8914BRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS89,
or try a keyword search, such as Analog to Digital Converters
