Texas Instruments provides a layout guide in the ADS8920BRGET datasheet, which recommends a 4-layer PCB with a solid ground plane, and careful routing of analog and digital signals to minimize noise and crosstalk. Additionally, it's recommended to use a low-ESR capacitor for the AVDD pin and to decouple the DVDD pin with a 0.1uF capacitor.
To optimize the ADC's performance, you should consider factors such as the input signal frequency, amplitude, and impedance, as well as the desired resolution and conversion rate. You can adjust the ADC's gain, offset, and sampling rate to suit your application. Additionally, you can use the ADC's built-in calibration features to improve its accuracy and linearity.
The ADS8920BRGET has a maximum input voltage of 5.5V, which is the absolute maximum rating. However, the recommended input voltage range is from 0V to VREF (which is typically 4.096V or 5V), to ensure accurate conversions and prevent damage to the device.
Yes, the ADS8920BRGET is a single-channel ADC, but it can be used in a multi-channel application by using multiple devices or by multiplexing the input signals using an external multiplexer. However, you should ensure that the multiplexer is designed to handle the high-frequency signals and does not introduce significant noise or distortion.
The ADS8920BRGET has a pipelined architecture, which means that there is a latency of several clock cycles between the input signal and the corresponding digital output. You should consider this latency when designing your application, and use the ADC's built-in features such as the data-ready signal to synchronize your system. Additionally, you can use the ADC's programmable delay feature to adjust the latency to suit your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8920BRGET Overview

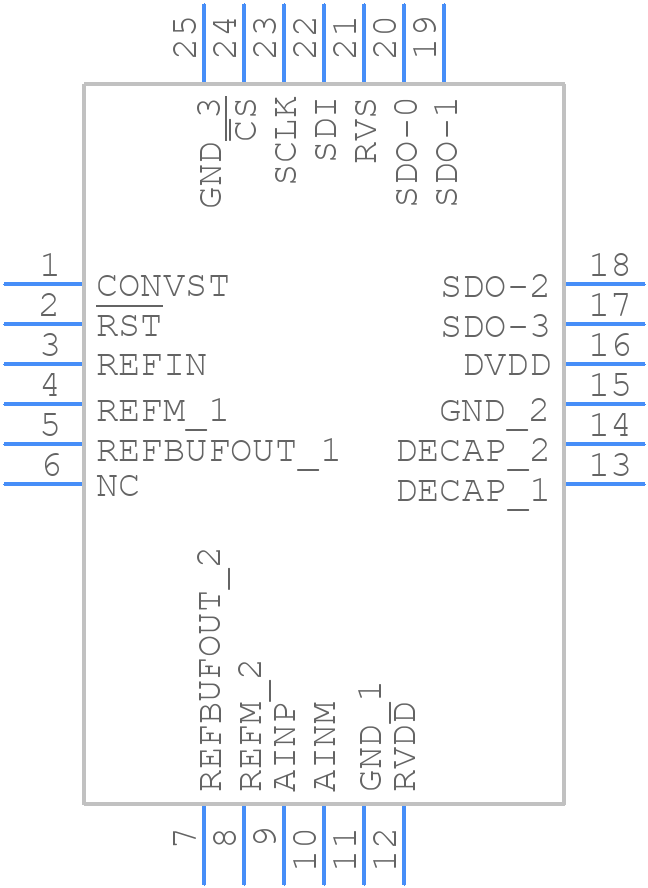

Use the download button to access the ADS8920BRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS89,
or try a keyword search, such as Analog to Digital Converters
