Texas Instruments provides a layout guide in the ADS8922BRGET datasheet, which recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the AVDD and DVDD pins, and to keep the input traces as short as possible.
The ADS8922BRGET requires a clock signal with a frequency range of 1-50 MHz. The clock source should have a low jitter and a stable frequency. It's recommended to use a crystal oscillator or a high-quality clock generator. The clock signal should be connected to the CLK pin, and the clock frequency should be set according to the desired sampling rate.
The recommended power-up sequence for the ADS8922BRGET is to power up the AVDD pin first, followed by the DVDD pin. The power-down mode can be achieved by setting the PDWN pin high. It's recommended to power down the device when not in use to reduce power consumption. During power-down, the device enters a low-power state, and the internal clock is stopped.
The ADS8922BRGET outputs 16-bit or 18-bit digital data in a serial format. The output data is in two's complement format, and the MSB is output first. The data is output on the DOUT pin, and the data rate is determined by the clock frequency. The device also provides a data-ready signal (DRDY) to indicate when the data is available.
The recommended input signal range for the ADS8922BRGET is 0-5V, and the input impedance is 10 kΩ. The device can handle input signals with a bandwidth up to 10 kHz. Input signal conditioning may be required to match the input signal to the device's input range and impedance. This can be achieved using an op-amp or a dedicated signal conditioning circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8922BRGET Overview

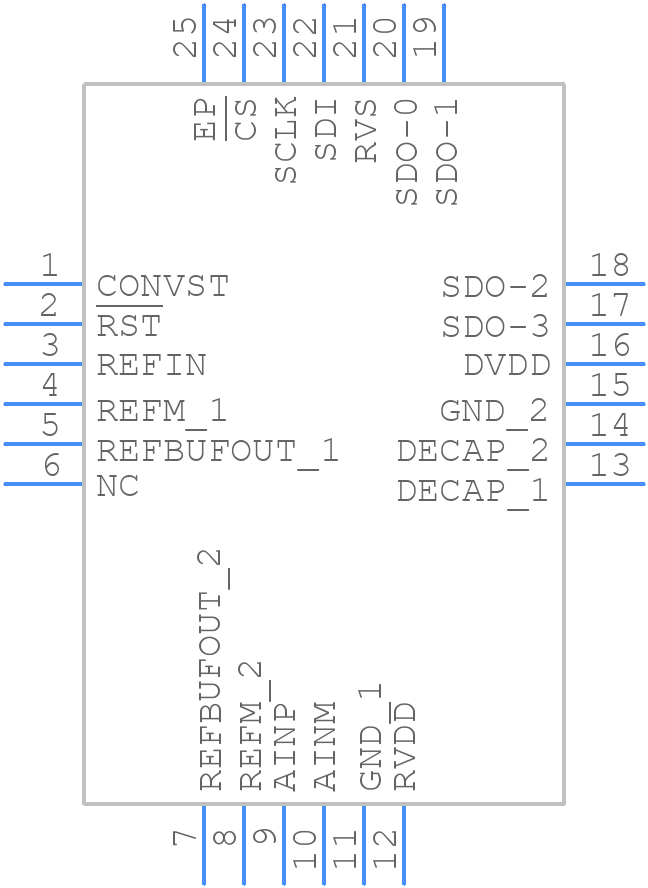

Use the download button to access the ADS8922BRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS89,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
