ADS900E/1K - Texas Instruments

Description: db

Download ADS900E/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

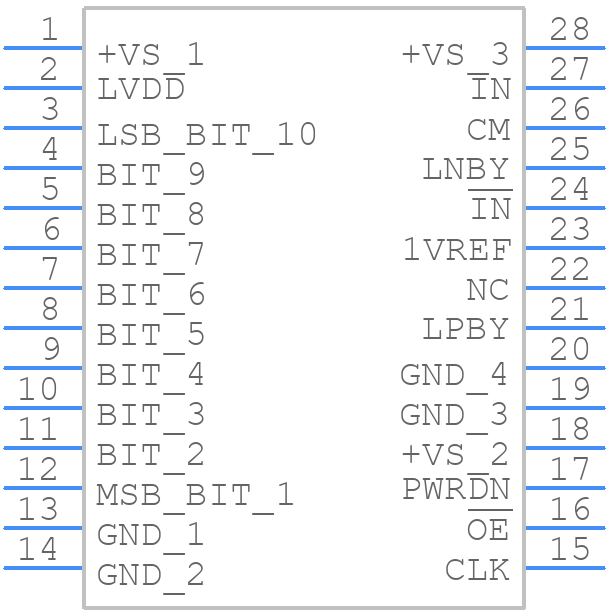

Symbol
ADS900E/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS900E/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
ADS900E/1K - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

ADS900E/1K Details

  • Manufacturer Part Number:

    ADS900E/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 1,2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    100 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.3418%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    22 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADS900E/1K Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
  • To minimize EMI, it is recommended to use a low-inductance path for the digital outputs, such as a stripline or microstrip transmission line. Additionally, the digital outputs should be terminated with a 50-ohm resistor to match the impedance of the transmission line. Shielding and grounding of the digital output cables can also help reduce EMI.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This sequence helps to ensure that the device powers up in a stable state and minimizes the risk of latch-up or other issues.
  • The ADS900E/1K has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input signal and then adjusting the internal calibration registers to achieve the desired accuracy. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
  • The maximum clock frequency for the ADS900E/1K is 100 MHz. Using a higher clock frequency can result in increased power consumption, reduced signal-to-noise ratio, and increased jitter. However, using a higher clock frequency can also increase the sampling rate and improve the device's overall performance.
