ADS9120IRGER - Texas Instruments

Description: 16-Bit, 2.5-MSPS, 15.5-mW, SAR ADC With multiSPI™ Interface

Download ADS9120IRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

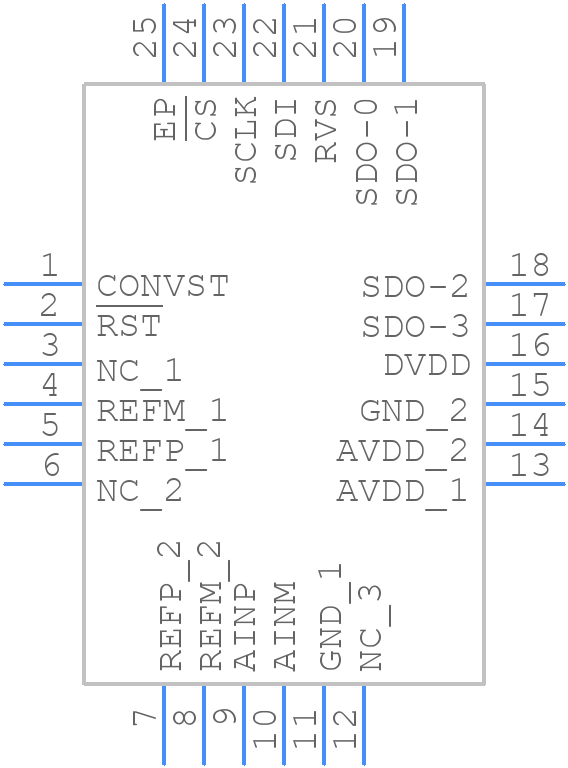

Symbol
ADS9120IRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS9120IRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-2021
click to zoom
3D Models
ADS9120IRGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-2021
click to zoom

ADS9120IRGER Details

  • Manufacturer Part Number:

    ADS9120IRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2016-09-22

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.29 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0011%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    2.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.75 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS9120IRGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS9120IRGER Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The optimal analog input filter design depends on the specific application requirements. TI provides a filter design tool (FilterPro) that can help engineers design and optimize the filter for their application. Additionally, the ADS9120IRGER datasheet provides guidelines for filter selection and design.
  • The maximum clock frequency for the ADS9120IRGER is 100 MHz. However, the actual clock frequency used may be limited by the specific application requirements, such as the sampling rate and the desired Nyquist bandwidth.
  • The ADS9120IRGER outputs 12-bit digital data in a serial format. Engineers can use a microcontroller or an FPGA to receive and process the data. TI provides example code and design files for popular microcontrollers and FPGAs to help with data handling and processing.
  • The power consumption of the ADS9120IRGER depends on the operating mode, sampling rate, and supply voltage. The datasheet provides detailed power consumption information. To optimize power consumption, engineers can use the device's power-down modes, adjust the sampling rate, and optimize the supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS9120IRGER Overview

Use the download button to access the ADS9120IRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS91, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
