Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the AVDD and DVDD pins with 0.1uF capacitors.
Use a low-jitter clock source, and ensure the clock signal is clean and free of noise. Use a clock frequency that is a multiple of the sampling frequency to minimize jitter. Also, use a series resistor (e.g., 22 ohms) to terminate the clock signal.
Power up the AVDD pin first, followed by the DVDD pin. Ensure that the AVDD pin is stable before applying a clock signal. Also, ensure that the digital power (DVDD) is powered up before the analog power (AVDD) is powered down.
During power-down or reset, the SDO pin may float or go high impedance. To avoid this, connect a 1k ohm pull-down resistor to the SDO pin to ensure it remains low during power-down or reset.
Use a common clock source for all devices, and ensure that the clock signal is distributed equally to each device. Use a clock buffer or repeater to ensure a clean clock signal. Also, use a common SYNC signal to synchronize the conversion process across all devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS9224RIRHBT Overview

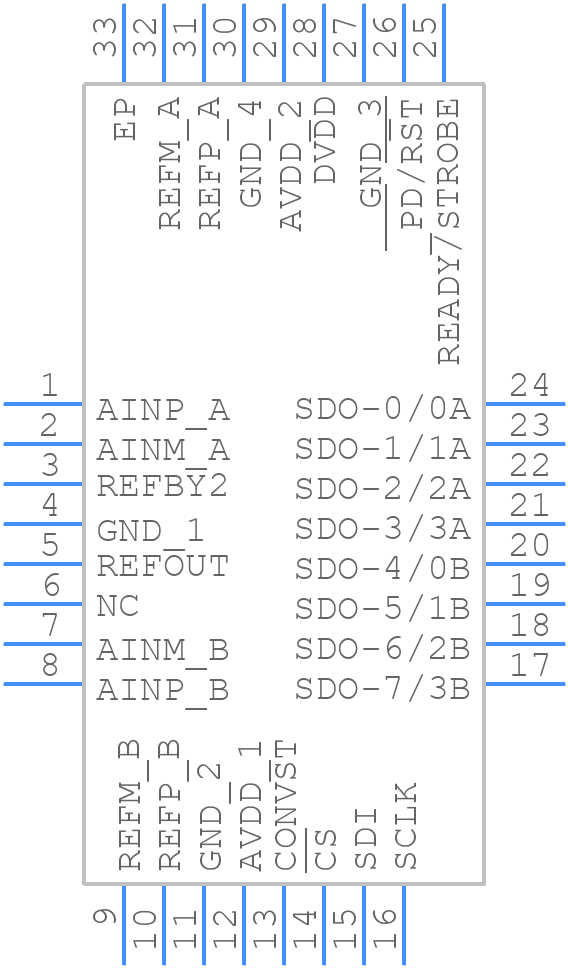

Use the download button to access the ADS9224RIRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS92,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
