Texas Instruments provides a recommended layout and routing guide in the ADS9226IRHBR Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
The ADS9226IRHBR datasheet provides a general guideline for analog input filtering. However, the optimal filter design depends on the specific application's frequency range, signal amplitude, and noise environment. Engineers can use tools like TI's FilterPro software or consult with TI's support team to get customized filter design recommendations.
While the datasheet specifies a maximum clock frequency of 65 MSPS, the actual maximum clock frequency may vary depending on the specific application, PCB layout, and signal integrity. It's recommended to consult with TI's support team or perform thorough testing to determine the maximum clock frequency for a specific design.
The ADS9226IRHBR outputs data in a serial format, and the specific data handling requirements depend on the downstream digital signal processing (DSP) or microcontroller (MCU) used. Engineers should consult the datasheet and application notes for guidance on data formatting, clocking, and synchronization.
The ADS9226IRHBR's power consumption varies depending on the operating mode, clock frequency, and input signal amplitude. The datasheet provides typical power consumption values, but engineers can optimize power consumption by using the device's power-down modes, reducing the clock frequency, or using a lower supply voltage. TI's WEBENCH Power Designer tool can also be used to estimate power consumption and optimize the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS9226IRHBR Overview

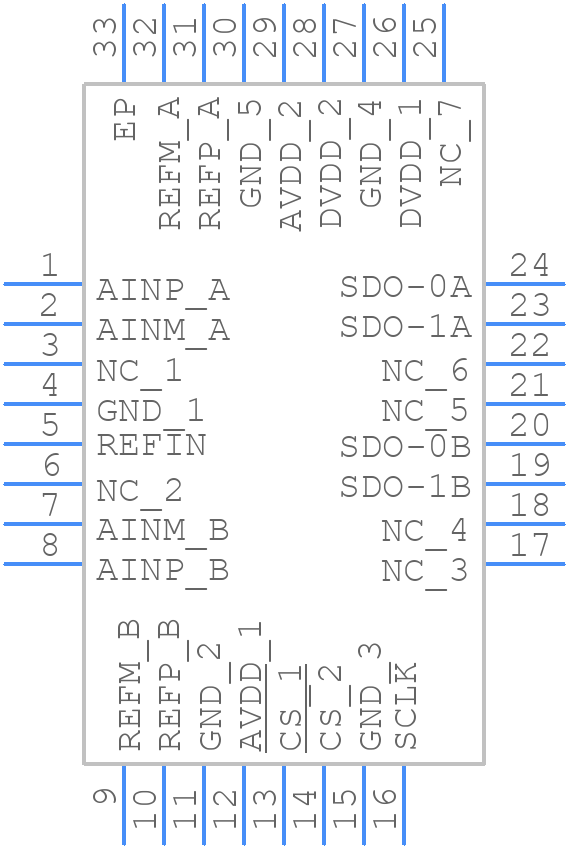

Use the download button to access the ADS9226IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS92,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
