ADS9234RIRHBR - Texas Instruments

Description: 14-bit, 3.5-MSPS, dual, simultaneous-sampling SAR ADC with internal reference and enhanced SPI

Download ADS9234RIRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

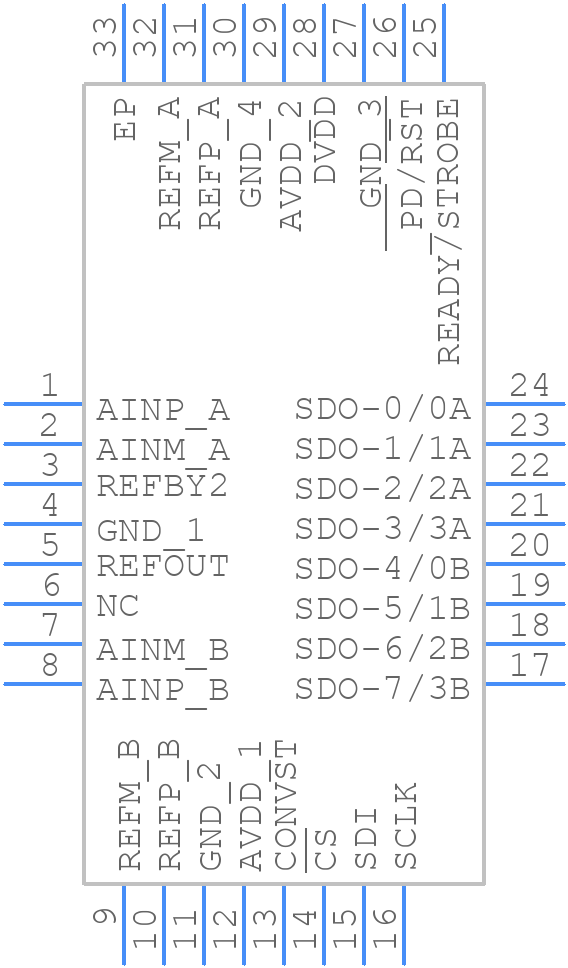

ADS9234RIRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS9234RIRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom
3D Models
ADS9234RIRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom

ADS9234RIRHBR Details

  • Manufacturer Part Number:

    ADS9234RIRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HQCCN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2019-04-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4.096 V

  • Analog Input Voltage-Min:

    -4.096 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    3 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS9234RIRHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS9234RIRHBR Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The optimal analog input filter design depends on the specific application and signal characteristics. TI provides a filter design tool (FilterPro) that can help engineers design and optimize the filter. Additionally, the ADS9234RIRHBR datasheet provides guidelines for filter selection and component values.
  • The maximum clock frequency for the ADS9234RIRHBR is 65 MHz. However, the actual clock frequency used may be limited by the specific application, PCB layout, and noise considerations. It's essential to consult the datasheet and perform thorough testing to ensure reliable operation at the desired clock frequency.
  • The ADS9234RIRHBR outputs 24-bit data in a serial format. Engineers can use a microcontroller or FPGA to receive and process the data. TI provides example code and software development kits (SDKs) to help with data processing and interface implementation.
  • The power consumption of the ADS9234RIRHBR depends on the operating mode, clock frequency, and supply voltage. The datasheet provides power consumption estimates. To optimize power consumption, engineers can use the device's power-down modes, reduce the clock frequency, and optimize the analog input signal range.
