ADT7476ARQZ-REEL - onsemi

Description: Monitors up to 5 Voltages; Controls and Monitors up to 4 Fans; High and Low Frequency Fan Drive Signal; 1 On-chip and 2 Remote Temperature Sensors; Extended temp measurement range, up to 191°C; Automatic fan speed control mode controls system cooling based on measured temperature; Enhanced acoustic mode dramatically reduces user perception of changing fan speeds; Thermal protection feature via THERM output; Monitors performance impact of Intel® Pentium®4 processor; Thermal control circuit via THERM input; 3

Download ADT7476ARQZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

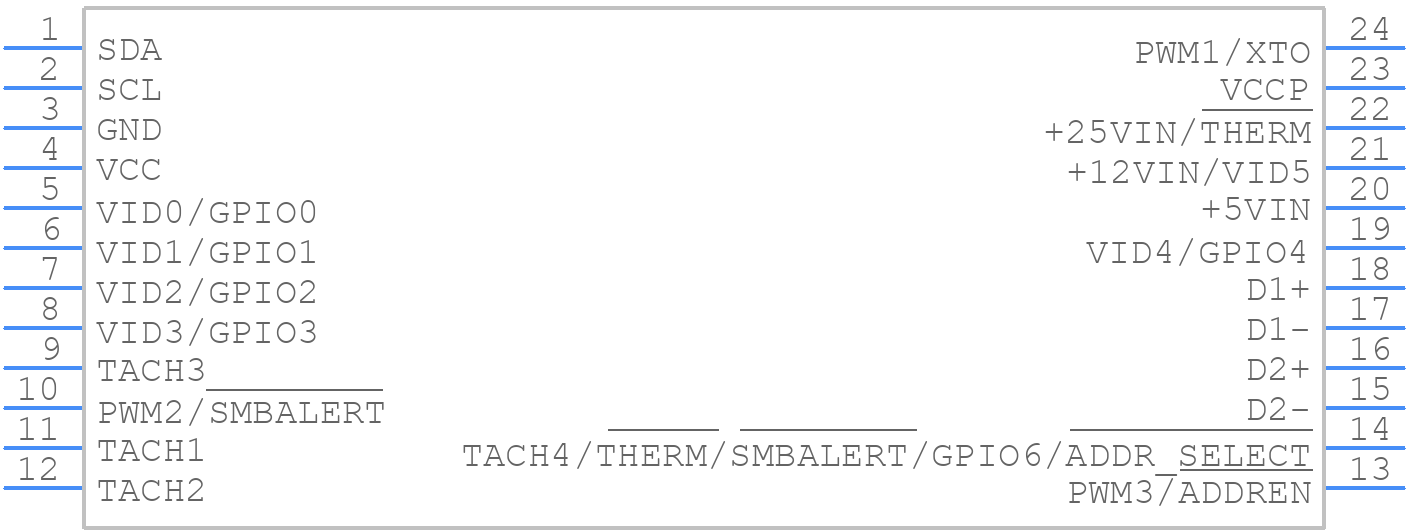

ADT7476ARQZ-REEL - onsemi - PCB symbol
click to zoom
PCB Footprints
ADT7476ARQZ-REEL - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - QSOP24 CASE 492B-01
click to zoom
3D Models
ADT7476ARQZ-REEL - onsemi - 3D model - Small Outline Packages - QSOP24 CASE 492B-01
click to zoom

ADT7476ARQZ-REEL Details

  • Manufacturer Part Number:

    ADT7476ARQZ-REEL

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP24 NB

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    492B-01

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.65 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ADT7476ARQZ-REEL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias under the package is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
  • Calibrate the device using the CAL pin, and ensure that the thermal sensor is in close proximity to the device being monitored. Also, use a low-noise, low-impedance connection to the thermal sensor.
  • The maximum cable length is 10 meters (33 feet) for the remote thermal sensor. Exceeding this length may result in signal degradation and inaccurate temperature readings.
  • Yes, the ADT7476 can be used with a fan controller to regulate fan speed based on temperature. The device provides a PWM output that can be used to control fan speed.
  • The ADT7476 provides a THERM output that can be used to detect thermal shutdown and faults. This output can be connected to a microcontroller or other logic to initiate shutdown or alert the user.
