A good PCB layout for the ADUM7701 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable communication, make sure to follow the recommended layout and routing guidelines, use a common mode choke or a transformer to reduce EMI, and add capacitors to filter out high-frequency noise. Also, ensure that the primary and secondary sides are properly isolated and that the signal levels are within the recommended specifications.
The ADUM7701 has an operating temperature range of -40°C to 125°C. As the temperature increases, the device's performance may degrade, resulting in reduced accuracy and increased power consumption. It's essential to ensure that the device is operated within the recommended temperature range to maintain optimal performance.
To troubleshoot issues with the ADUM7701, start by checking the power supply and ensuring that it's within the recommended specifications. Verify that the signal connections are correct and that the layout and routing meet the recommended guidelines. Use an oscilloscope to check the signal waveforms and look for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance.
The ADUM7701 is designed for high-voltage applications, but it's essential to follow the recommended safety precautions to avoid damage to the device or injury to personnel. Ensure that the device is properly isolated, and use protective components such as TVS diodes or surge arrestors to protect against overvoltage conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADUM7701-8BRIZ-RL Overview

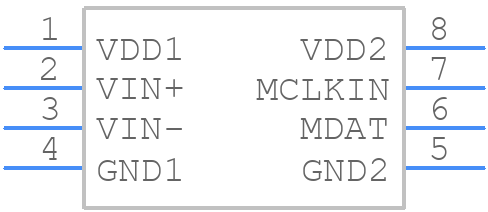

Use the download button to access the ADUM7701-8BRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM7,
or try a keyword search, such as Analog to Digital Converters
