A good PCB layout for the ADUM7701BRWZ-RL7 should minimize noise coupling and ensure good isolation between the high-voltage and low-voltage sides. This can be achieved by keeping the high-voltage and low-voltage traces separate, using a solid ground plane, and placing the device near the isolation barrier. Additionally, the use of a shielded cable or a twisted pair for the high-voltage input can help reduce noise.
To ensure accurate current measurement with the ADUM7701BRWZ-RL7, it is essential to follow proper layout and routing guidelines, such as keeping the sense lines short and away from noise sources, and using a low-impedance path for the sense current. Additionally, the burden resistor value should be chosen carefully to ensure that it does not introduce significant error in the measurement.
The ADUM7701BRWZ-RL7 is rated for operation over a temperature range of -40°C to +125°C. However, the device's accuracy and performance may degrade at extreme temperatures, so it is essential to consider the specific application requirements and ensure that the device is operated within its recommended temperature range.
The ADUM7701BRWZ-RL7 is a robust device that can withstand moderate levels of vibration. However, it is essential to ensure that the device is properly mounted and secured to the PCB to prevent damage or dislodging due to vibration. Additionally, the use of a conformal coating or potting compound can help protect the device from environmental stresses.
To troubleshoot issues with the ADUM7701BRWZ-RL7, it is essential to follow a systematic approach, starting with a review of the device's datasheet and application notes. Common issues include incorrect pin connections, inadequate power supply decoupling, and noise coupling. Using an oscilloscope or logic analyzer can help identify issues with the device's output signals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADUM7701BRWZ-RL7 Overview

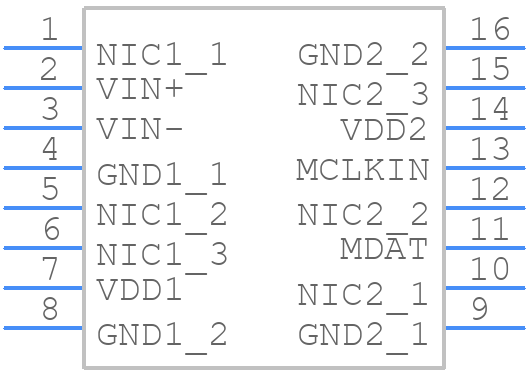

Use the download button to access the ADUM7701BRWZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM7,
or try a keyword search, such as Analog to Digital Converters
