ADUM7702-8BRIZ - Analog Devices

Description: 16-Bit, Isolated, Sigma-Delta Modulator

Download ADUM7702-8BRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

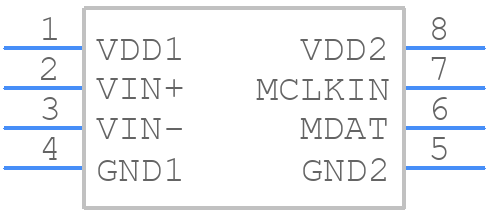

ADUM7702-8BRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM7702-8BRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-8-1
click to zoom
3D Models
ADUM7702-8BRIZ - Analog Devices - 3D model - Small Outline Packages - RI-8-1
click to zoom

ADUM7702-8BRIZ Details

  • Manufacturer Part Number:

    ADUM7702-8BRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RI-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    0.064 V

  • Analog Input Voltage-Min:

    -0.064 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.0781 MHz

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ADUM7702-8BRIZ Frequently Asked Questions (FAQs)

  • The ADUM7702-8BRIZ can support data rates up to 100 Mbps, but the actual data rate may be limited by the specific application and system design.
  • To ensure reliable communication, it is essential to follow proper PCB layout and design guidelines, use suitable isolation capacitors, and ensure that the power supplies on both sides of the isolation barrier are stable and well-regulated.
  • No, the ADUM7702-8BRIZ is designed for point-to-point communication and is not suitable for multi-point or multi-drop configurations. Each device can only communicate with one other device on the other side of the isolation barrier.
  • The ADUM7702-8BRIZ is rated for operation over the industrial temperature range of -40°C to +105°C, but the actual operating temperature range may be limited by the specific application and system design.
  • The ADUM7702-8BRIZ provides error detection and reporting mechanisms, such as parity and checksum errors. The system designer should implement error handling and fault tolerance mechanisms in the system software and hardware to ensure reliable operation in the presence of errors or faults.
