ADV8005KBCZ-8B - Analog Devices

Description: NatureVue™ Video Signal Processor with Bitmap OSD, Dual HDMI Tx, and Encoder

Download ADV8005KBCZ-8B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV8005KBCZ-8B - Analog Devices - PCB symbol
click to zoom
PCB Footprints

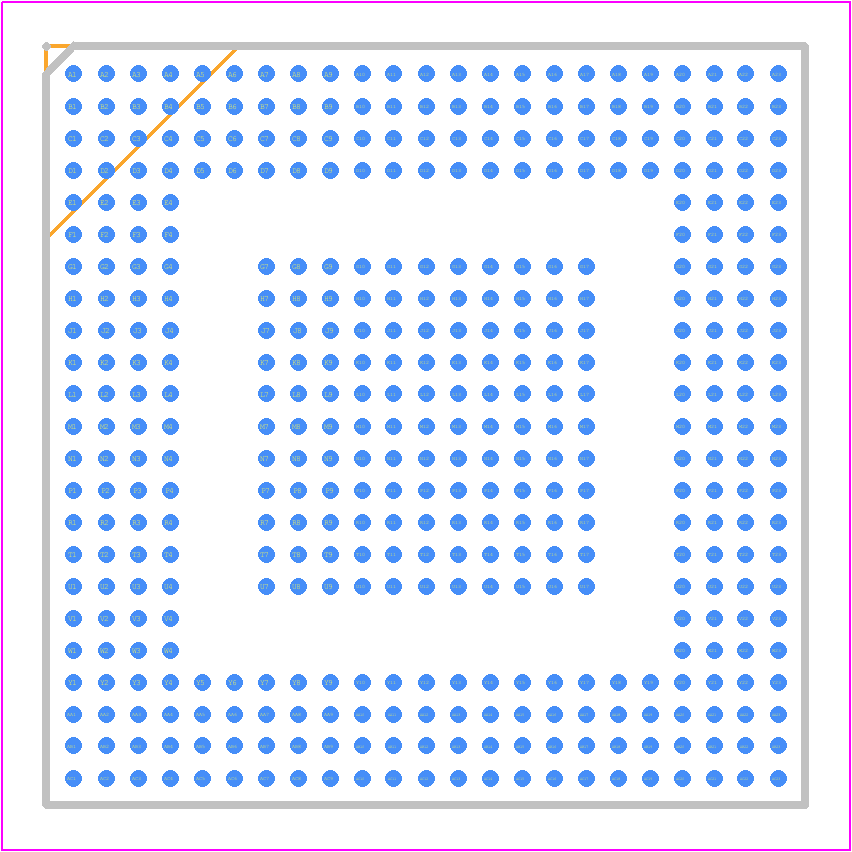

ADV8005KBCZ-8B - Analog Devices PCB footprint - BGA - BGA - CHIP SCALE BGA
click to zoom
3D Models
ADV8005KBCZ-8B - Analog Devices - 3D model - BGA - CHIP SCALE BGA
click to zoom

ADV8005KBCZ-8B Details

  • Manufacturer Part Number:

    ADV8005KBCZ-8B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-425

  • Pin Count:

    425

  • Manufacturer Package Code:

    BC-425-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B425

  • JESD-609 Code:

    e1

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    425

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA425,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    1.854 V

  • Supply Voltage-Min (Vsup):

    1.746 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

ADV8005KBCZ-8B Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV8005KBCZ-8B can be found in the ADV8005 Evaluation Board User Guide (UG-235) and the ADV8005 Layout Guidelines document, both available on the Analog Devices website. These resources provide detailed guidance on component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The ADV8005KBCZ-8B can be configured for specific video formats using the I2C interface. The ADV8005 datasheet provides a list of registers and their corresponding values for different video formats. Additionally, the ADV8005 Software Development Kit (SDK) provides a graphical user interface (GUI) tool that allows users to configure the device for various video formats and save the configuration to a file.
  • The maximum cable length supported by the ADV8005KBCZ-8B depends on the specific video format and the quality of the cable. In general, the ADV8005KBCZ-8B can support cable lengths of up to 30 meters for HDMI 2.0 and up to 15 meters for HDMI 1.4. However, it's recommended to use high-quality cables and to follow proper cable termination and routing practices to ensure reliable operation.
  • Troubleshooting issues with the ADV8005KBCZ-8B typically involves using a combination of tools and techniques, such as logic analyzers, oscilloscopes, and debug software. The ADV8005 datasheet and application notes provide guidance on troubleshooting common issues, such as signal integrity problems, clock domain crossing issues, and I2C communication errors. Additionally, Analog Devices provides technical support and resources, such as the EngineerZone forum, to help engineers troubleshoot and resolve issues.
  • The ADV8005KBCZ-8B is an HDMI 2.0 device and does not support HDMI 2.1. However, Analog Devices offers other products, such as the ADV8025, that support HDMI 2.1 and other advanced features. Engineers should consult the datasheet and product documentation to determine the best device for their specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV8005KBCZ-8B Overview

Use the download button to access the ADV8005KBCZ-8B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV80, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
