ADV8005KBCZ-8N-RL - Analog Devices

ADV8005KBCZ-8N-RL Details

• Manufacturer Part Number:

  ADV8005KBCZ-8N-RL

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

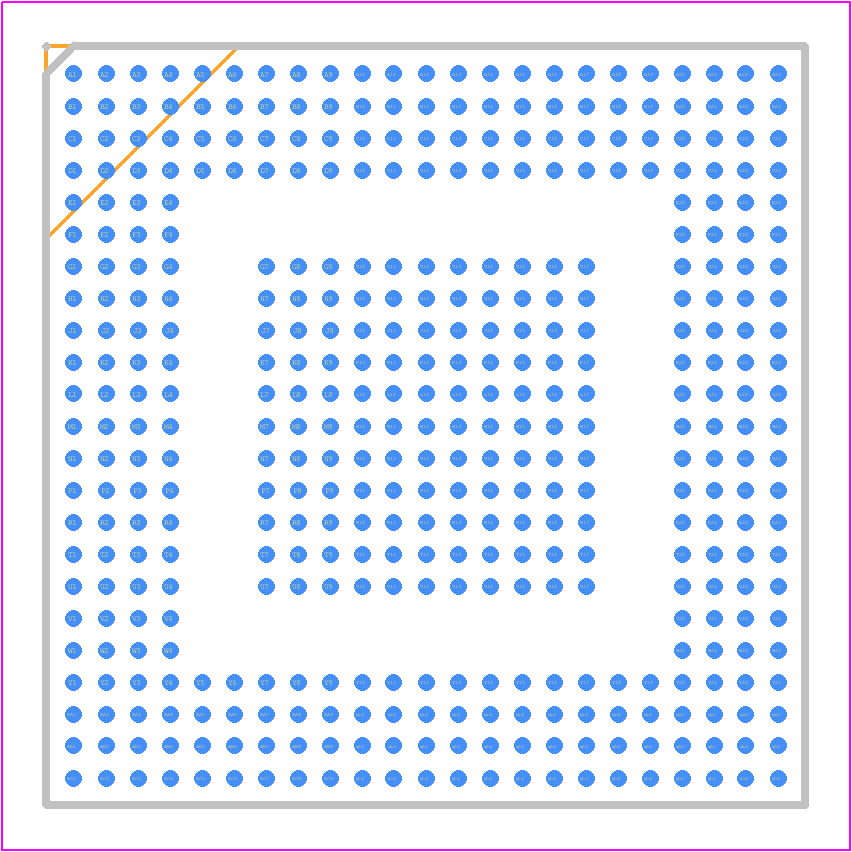

• Package Description:

  BGA-425

• Pin Count:

  425

• Manufacturer Package Code:

  BC-425-1

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  S-PBGA-B425

• Length:

  19 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  425

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA425,23X23,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.5 mm

• Supply Voltage-Max (Vsup):

  1.854 V

• Supply Voltage-Min (Vsup):

  1.746 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  19 mm
