ADW70015Z-0RL - Analog Devices

Description: ► 20 MHz maximum external clock rate ► Second-order modulator ► 16 bits, no missing codes ► ±2 LSB INL typical at 16 bits ► 1 µV/°C typical offset drift ► On-board digital isolator ► On-board reference ► ±250 mV analog input range ► Low power operation: 17 mA typical at 5.5 V ► −40°C to +125°C operating range ► 16-lead SOIC package ► Internal clock version: AD7400A ► Safety and regulatory approvals ► UL 1577 ► VISO = 5000 V rms for 1 minute ► IEC / CSA 62368-1 ► IEC / CSA 61010-1 ► DIN EN I

Download ADW70015Z-0RL Model

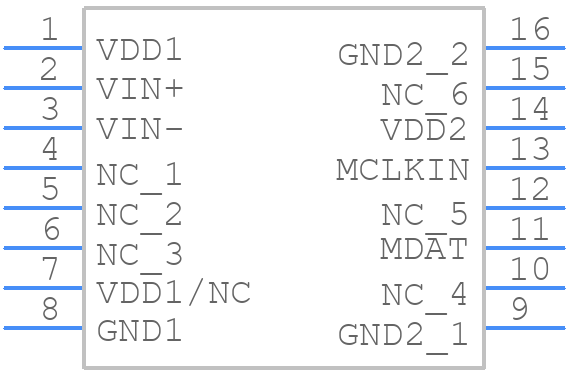

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADW70015Z-0RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom
3D Models
ADW70015Z-0RL - Analog Devices  - 3D model - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom

ADW70015Z-0RL Details

  • Manufacturer Part Number:

    ADW70015Z-0RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.07019%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADW70015Z-0RL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Use a high-quality, low-noise power supply with a minimum of 1.8V and a maximum of 5.5V. Decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed close to the device.
  • The recommended clock frequency is between 1MHz and 50MHz. However, the device can operate up to 100MHz with reduced performance. It's essential to follow the clock signal integrity guidelines to ensure reliable operation.
  • The digital output data is CMOS-compatible and can be directly connected to a microcontroller or FPGA. Ensure the receiving device can handle the output data rate and format. Use a buffer or a FIFO if necessary to handle data transfer.
  • The device has a thermal pad on the bottom side. Use a thermal interface material (TIM) to improve heat transfer between the device and the PCB. Ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
