AEB226M2WS44T-F - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - SMD 450V 22uF 18X21.5

Download AEB226M2WS44T-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AEB226M2WS44T-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

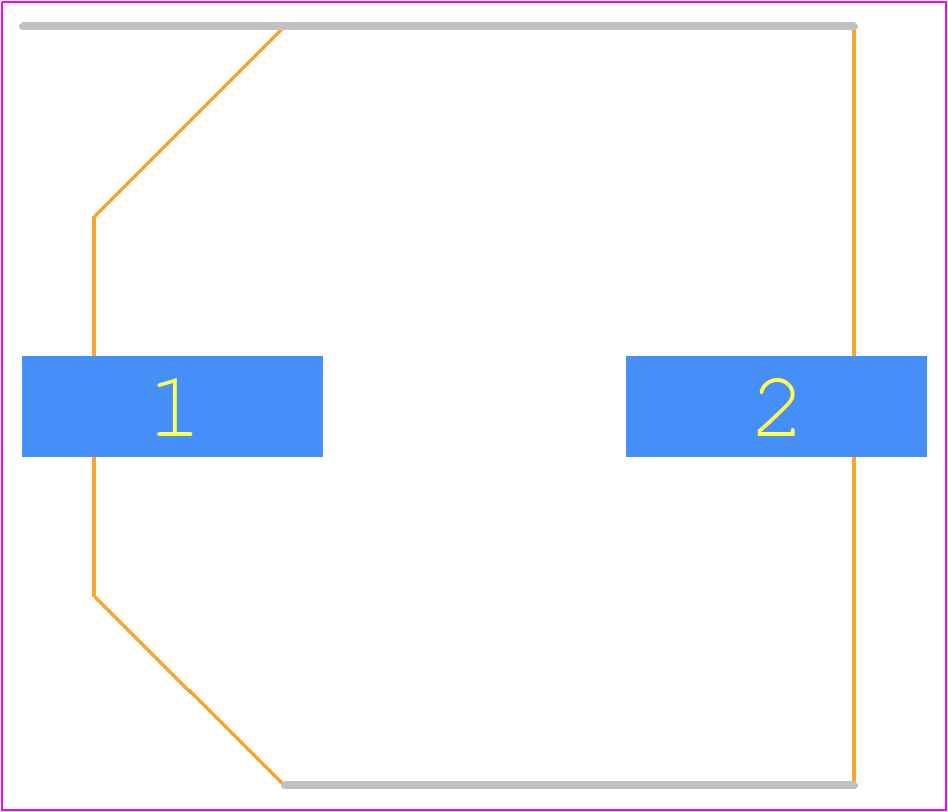

AEB226M2WS44T-F - Cornell Dubilier PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 18X21.5_2021
click to zoom
3D Models
AEB226M2WS44T-F - Cornell Dubilier - 3D model - Capacitor Al Electrolytic - 18X21.5_2021
click to zoom

AEB226M2WS44T-F Details

  • Manufacturer Part Number:

    AEB226M2WS44T-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    , 8375

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    0

  • Capacitance:

    22 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    21.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.604 mA

  • Length:

    21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    280 mA

  • Size Code:

    8375

  • Surface Mount:

    YES

  • Tan Delta:

    0.24

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    19 mm

AEB226M2WS44T-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the component.
  • Yes, the AEB226M2WS44T-F is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the component to prevent mechanical stress and damage.
  • Yes, the AEB226M2WS44T-F is compatible with lead-free soldering processes. It's RoHS-compliant and meets the requirements for lead-free assembly.
  • The maximum operating temperature range for AEB226M2WS44T-F is -40°C to +125°C (-40°F to +257°F). Operating the component outside this range may affect its performance and reliability.
  • The AEB226M2WS44T-F is designed to operate in a normal environment with a relative humidity of 60% or less. Operating the component in a humid or moist environment may affect its performance and reliability. It's recommended to use conformal coating or other protection methods to prevent moisture ingress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AEB226M2WS44T-F Overview

Use the download button to access the AEB226M2WS44T-F schematic symbol, PCB footprint, and 3D model.
