A good PCB layout for the AFE030AIRGZR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To properly configure the internal voltage regulators, ensure that the input voltage (VIN) is within the recommended range (2.7V to 5.5V), and that the output capacitors (C1 and C2) are properly sized and placed close to the device. Also, ensure that the voltage regulator outputs (VDDA and VDDD) are decoupled with 1uF capacitors.
The recommended clocking scheme for the AFE030AIRGZR involves using a single clock source (CLKIN) that is synchronized with the ADC sampling clock. The clock frequency should be set to 2x the ADC sampling frequency, and the clock signal should be clean and free of jitter to ensure accurate data conversion.
To optimize the AFE, ensure that the input signal is properly biased and amplified, and that the input impedance is matched to the signal source. Also, adjust the gain and offset settings to optimize the signal-to-noise ratio (SNR) and ensure that the signal is within the ADC's input range.
To ensure EMC with the AFE030AIRGZR, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering and shielding on the input and output signals. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE030AIRGZR Overview

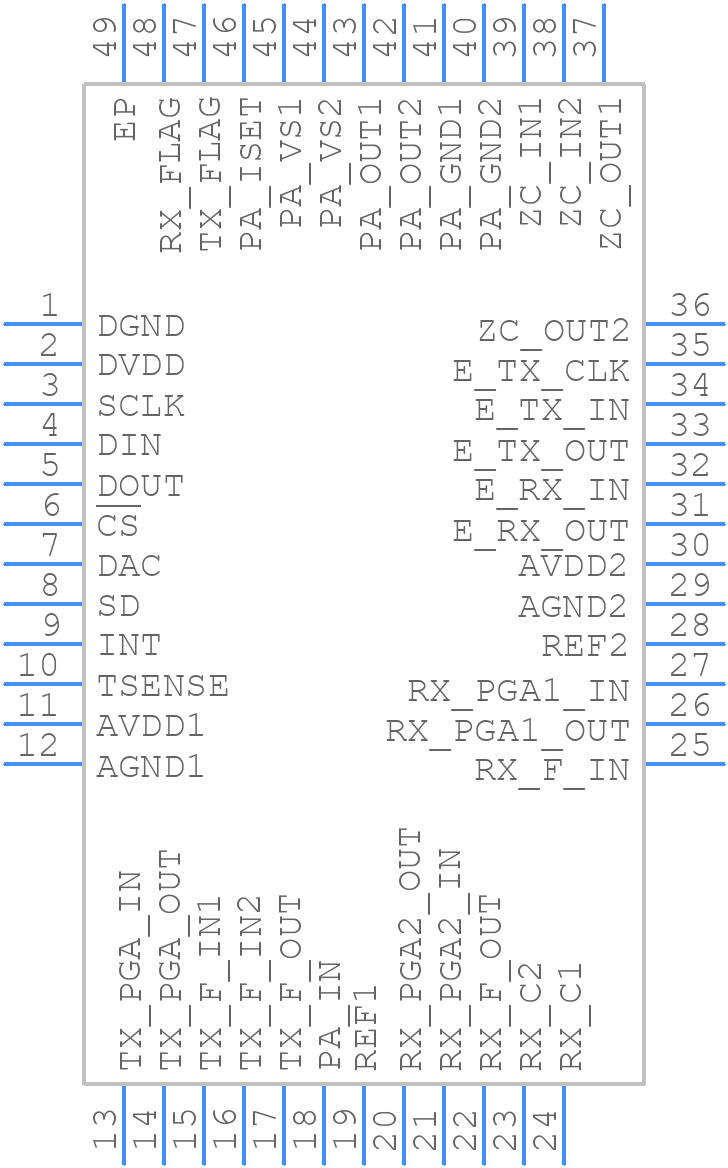

Use the download button to access the AFE030AIRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE03,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
