Texas Instruments provides a recommended PCB layout in the AFE030AIRGZT evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The AFE030AIRGZT has a programmable gain amplifier and filter, which can be configured through the SPI interface. The device can be configured for different input signal types, such as AC or DC coupled, and different gain settings, using the provided software development kit (SDK) and documentation.
The AFE030AIRGZT can handle input signal amplitudes up to ±10Vpp, but the maximum amplitude depends on the gain setting and the input impedance. It's recommended to consult the datasheet and application notes for specific guidance on input signal amplitude and impedance matching.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and consider using electromagnetic interference (EMI) filters or common-mode chokes on the input and output signals. Additionally, consult the AFE030AIRGZT datasheet and application notes for specific EMC guidance.
The power consumption of the AFE030AIRGZT depends on the operating mode, gain setting, and clock frequency. The device has a typical power consumption of 130mW at 3.3V supply voltage. To optimize power consumption, consider using the device's power-down modes, reducing the clock frequency, and optimizing the gain setting for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE030AIRGZT Overview

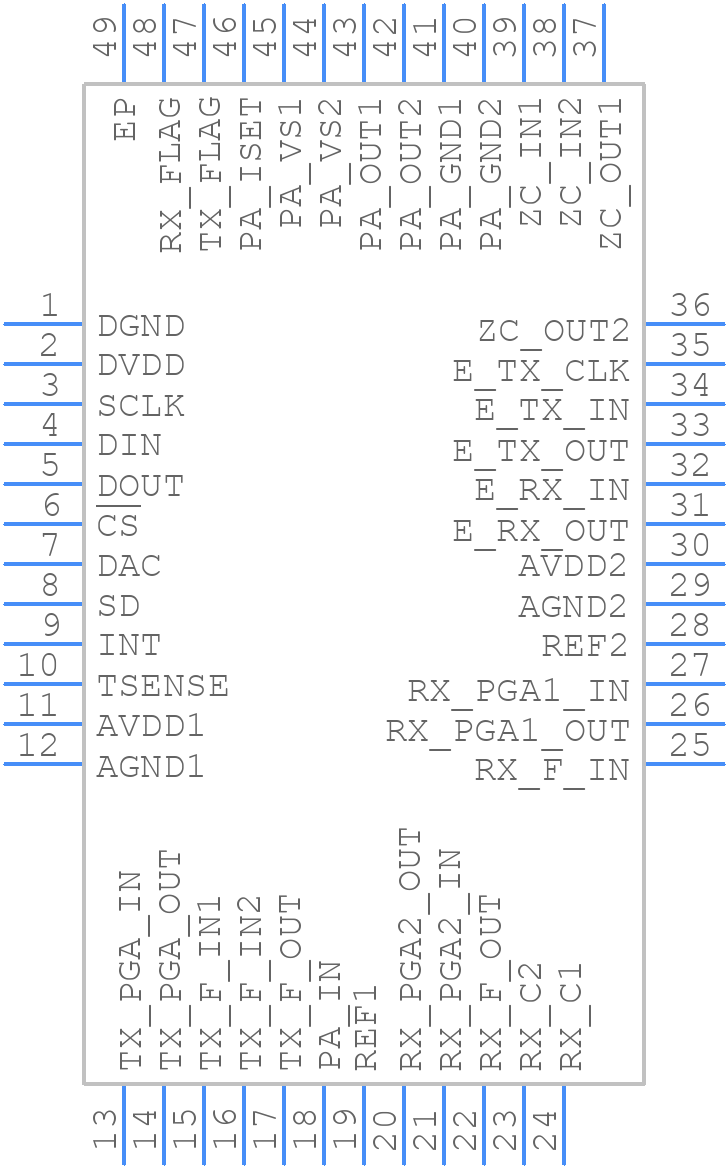

Use the download button to access the AFE030AIRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE03,
or try a keyword search, such as Other Signal Circuits
