Texas Instruments provides a recommended PCB layout guide in the AFE032IRGZT evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The AFE032IRGZT can be configured for different input signal types using the device's configuration registers. The device supports both single-ended and differential input modes, and the configuration can be set using the SPI interface.
The maximum input signal amplitude that the AFE032IRGZT can handle without saturating is ±2.5Vpp differential or ±5Vpp single-ended, depending on the input mode and gain setting.
Optimizing the AFE032IRGZT's performance for a specific application requires careful consideration of the device's configuration, gain setting, and filtering. Texas Instruments provides application notes and design guides for specific applications, such as ultrasound and medical imaging, which provide guidance on optimizing the device's performance.
The power consumption of the AFE032IRGZT depends on the device's configuration, clock speed, and operating mode. The device's power consumption can be minimized by using the lowest possible clock speed, disabling unused features, and using the device's power-down modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE032IRGZT Overview

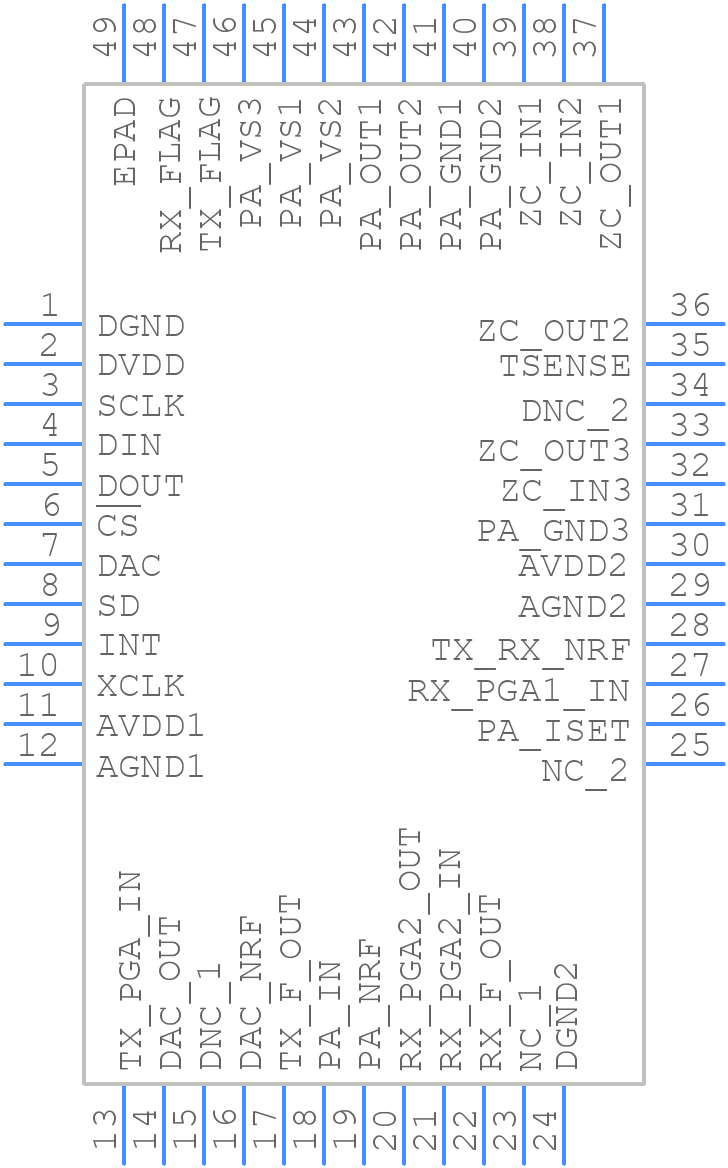

Use the download button to access the AFE032IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE03,
or try a keyword search, such as Other Signal Circuits
