Texas Instruments provides a recommended PCB layout in the AFE3010EVM user's guide, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize noise.
The AFE3010AIRGTR can be configured for different frequency bands by adjusting the values of the external components, such as the input matching network and the loop filter components. The specific values required will depend on the frequency band of interest and can be determined using the TI FilterPro software or other filter design tools.
The maximum input power that the AFE3010AIRGTR can handle is -10 dBm, which is specified in the datasheet. Exceeding this input power may result in compression or damage to the device.
Optimizing the performance of the AFE3010AIRGTR requires careful consideration of the system-level design, including the input signal characteristics, the PCB layout, and the external component values. TI provides a range of resources, including application notes, user's guides, and design tools, to help engineers optimize the performance of the AFE3010AIRGTR in their specific application.
The typical current consumption of the AFE3010AIRGTR is 130 mA, which is specified in the datasheet. However, the actual current consumption may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE3010AIRGTR Overview

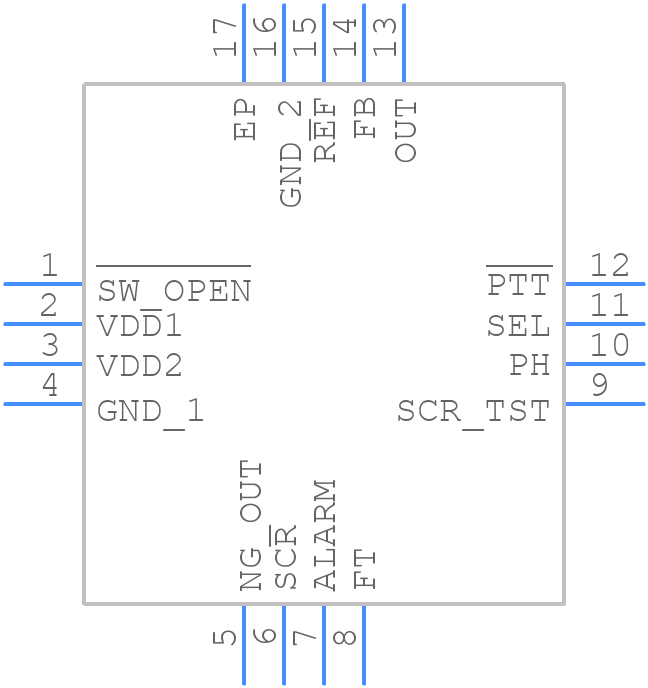

Use the download button to access the AFE3010AIRGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE30,
or try a keyword search, such as Power Management Circuits
