A good PCB layout for the AFE4404YZPR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the photodiode. TI provides a recommended layout in the datasheet and application notes.
To optimize the AFE4404YZPR for low-power operation, use the lowest possible clock frequency, disable unused channels, and adjust the PGA gain to minimize power consumption. Additionally, consider using the device's built-in power-down modes.
The maximum allowable capacitance for the photodiode connection depends on the specific application and photodiode used. As a general guideline, TI recommends keeping the capacitance below 10nF to ensure proper operation.
To handle EMI and RFI in your AFE4404YZPR design, use proper shielding, grounding, and filtering techniques. TI recommends using a metal shield around the device, keeping the analog and digital sections separate, and using EMI filters on the power supply lines.
The recommended calibration procedure for the AFE4404YZPR involves adjusting the PGA gain, offset, and gain correction registers to optimize the device's performance. TI provides a detailed calibration procedure in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE4404YZPR Overview

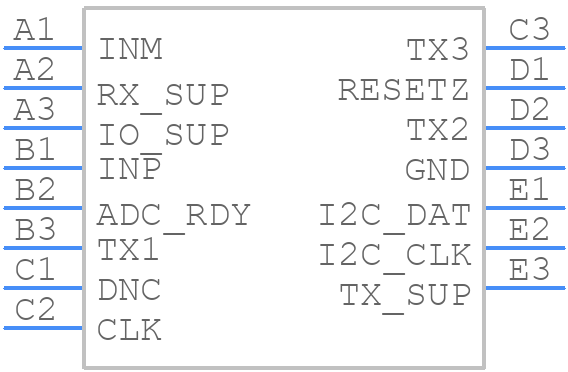

Use the download button to access the AFE4404YZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE44,
or try a keyword search, such as Analog to Digital Converters
