Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PBGA-B135
JESD-609 Code:
e1
Length:
15 mm
Moisture Sensitivity Level:
3
Number of Channels:
8
Number of Functions:
1
Number of Terminals:
135
Operating Temperature-Max:
85 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
BGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.72 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3.15 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
9 mm
AFE5803ZCF Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the AFE5803ZCF evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The AFE5803ZCF has a programmable AFE, and the optimal settings depend on the specific application. TI provides a software development kit (SDK) that includes a graphical user interface (GUI) to configure the AFE settings, as well as example code and documentation to help optimize the settings for your application.
The AFE5803ZCF has a maximum data transfer rate of 160 MSPS (mega-samples per second) for the analog-to-digital converter (ADC) and 80 MSPS for the digital-to-analog converter (DAC). However, the actual data transfer rate may be limited by the system clock frequency and the specific application requirements.
To ensure EMC and EMI compliance, follow the recommended PCB layout and design guidelines provided by TI, use proper shielding and grounding techniques, and consider using EMI filters and shielding components in your design. Additionally, perform EMC and EMI testing to ensure compliance with relevant standards and regulations.
The AFE5803ZCF has a typical power consumption of 1.2 W at 1.8 V supply voltage. To optimize power consumption, use the power-down modes, adjust the clock frequency, and optimize the AFE settings for your specific application. Additionally, consider using power-saving features such as dynamic voltage and frequency scaling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE5803ZCF Overview

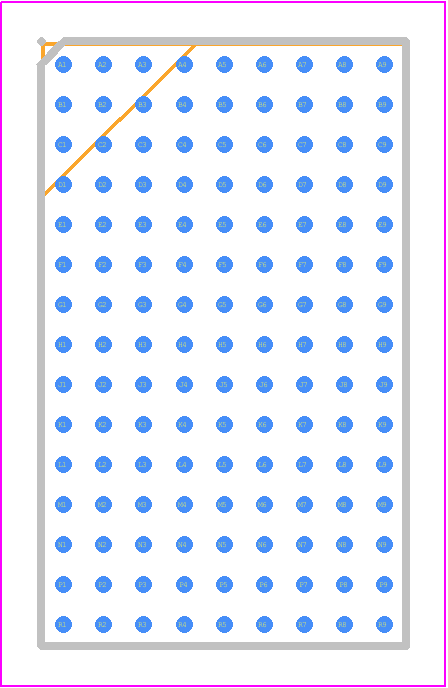

Use the download button to access the AFE5803ZCF schematic symbol, PCB footprint, and 3D model.
