AFE5804ZCF - Texas Instruments

Description: 8-Channel Analog Front-End for Ultrasound

Download AFE5804ZCF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFE5804ZCF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

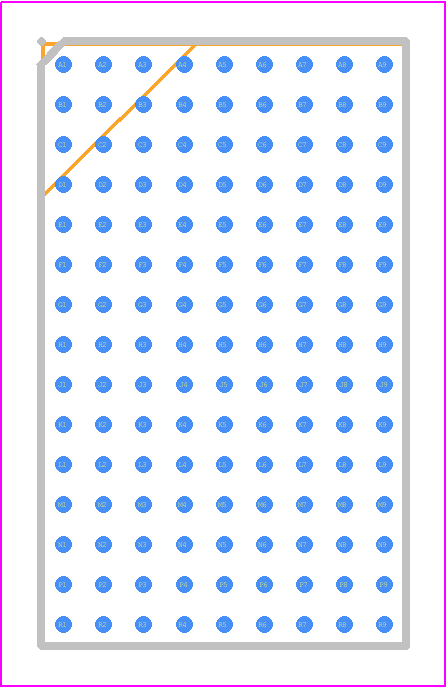

AFE5804ZCF - Texas Instruments PCB footprint - BGA - BGA - ZCF (R-PBGA-N135)
click to zoom
3D Models
AFE5804ZCF - Texas Instruments - 3D model - BGA - ZCF (R-PBGA-N135)
click to zoom

AFE5804ZCF Details

  • Manufacturer Part Number:

    AFE5804ZCF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    135

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B135

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    135

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.72 mm

  • Supply Voltage-Max (Vsup):

    3.47 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AFE5804ZCF Frequently Asked Questions (FAQs)

  • A good PCB layout for the AFE5804ZCF involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing signal traces near the ADC inputs. TI provides a recommended layout in the datasheet and application notes.
  • Optimizing the AFE5804ZCF's performance involves selecting the right gain settings, filter configurations, and clock frequencies for your specific application. TI provides application notes and software tools to help with this process.
  • The AFE5804ZCF's ADC has limitations such as input voltage range, sampling rate, and resolution. Ensure that your input signal is within the specified range and that you're not exceeding the maximum sampling rate. Also, be aware of the ADC's non-linearity and noise floor.
  • The AFE5804ZCF can be interfaced with a microcontroller or FPGA using the SPI or I2C interface. Ensure that the interface clock frequency and data transfer protocol are compatible with your microcontroller or FPGA.
  • The AFE5804ZCF's power consumption depends on the operating mode and clock frequency. Ensure that your power supply can provide the required current, and consider thermal management techniques such as heat sinks or thermal pads to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFE5804ZCF Overview

Use the download button to access the AFE5804ZCF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE58, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
