AFE5808AZCF - Texas Instruments

Description: Fully Integrated, 8 Channel Ultrasound Analog Front End with Passive CW Mixer

Download AFE5808AZCF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFE5808AZCF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

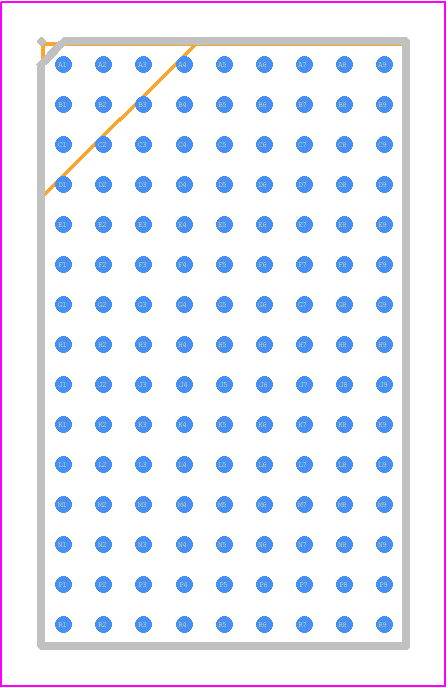

AFE5808AZCF - Texas Instruments PCB footprint - BGA - BGA - ZCF (R-PBGA-N135)
click to zoom
3D Models
AFE5808AZCF - Texas Instruments - 3D model - BGA - ZCF (R-PBGA-N135)
click to zoom

AFE5808AZCF Details

  • Manufacturer Part Number:

    AFE5808AZCF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    135

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OERATES AT 5V SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B135

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    135

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.72 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AFE5808AZCF Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AFE5808AZCF evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AFE5808AZCF has a range of programmable settings, such as gain, filter cutoff frequencies, and analog-to-digital converter (ADC) sampling rates. Engineers can use the TI-provided software development kit (SDK) and evaluation software to optimize these settings for their specific application.
  • The AFE5808AZCF's SPI interface has a maximum data transfer rate of 20 Mbps, which is sufficient for most medical imaging and patient monitoring applications.
  • To ensure EMC and EMI compliance, engineers should follow proper PCB design and layout practices, use shielding and filtering as needed, and consider using the AFE5808AZCF's built-in electromagnetic interference (EMI) filters and electrostatic discharge (ESD) protection features.
  • The AFE5808AZCF has a typical power consumption of 1.2 W. Engineers can optimize power management by using the device's power-down modes, adjusting the ADC sampling rate, and using external power management ICs as needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFE5808AZCF Overview

Use the download button to access the AFE5808AZCF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE58, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
