AFE5808ZCF - Texas Instruments

Description: 8-channel low noise analog front end with passive CW mixer for ultrasound

Download AFE5808ZCF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFE5808ZCF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

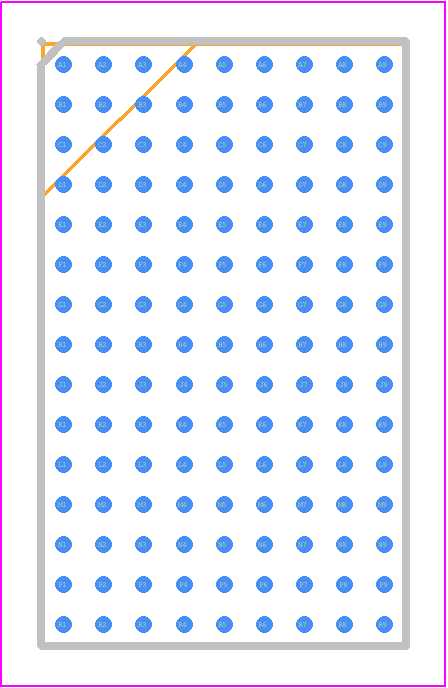

AFE5808ZCF - Texas Instruments PCB footprint - BGA - BGA - ZCF (R-PBGA-N135)
click to zoom
3D Models
AFE5808ZCF - Texas Instruments - 3D model - BGA - ZCF (R-PBGA-N135)
click to zoom

AFE5808ZCF Details

  • Manufacturer Part Number:

    AFE5808ZCF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    135

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B135

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    135

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.31 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AFE5808ZCF Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AFE5808ZCF evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AFE5808ZCF has a programmable gain amplifier (PGA) and a low-pass filter (LPF) that can be optimized for specific applications. TI provides a software development kit (SDK) that includes a graphical user interface (GUI) to configure and optimize the AFE settings.
  • The AFE5808ZCF can achieve a maximum data rate of 250 kSPS (kilosamples per second) in high-speed mode, making it suitable for high-speed data acquisition applications.
  • TI provides guidelines for EMC and EMI compliance in the AFE5808ZCF datasheet and application notes, including recommendations for PCB layout, shielding, and filtering to minimize electromagnetic emissions and susceptibility.
  • The AFE5808ZCF has a typical power consumption of 120 mW in low-power mode. To optimize power consumption, engineers can use the device's power-down modes, adjust the clock frequency, and use the built-in power-saving features such as the automatic power-down mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFE5808ZCF Overview

Use the download button to access the AFE5808ZCF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE58, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
