A good PCB layout for the AFE5816ZAV involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. TI provides a recommended PCB layout in the datasheet and application notes.
Optimizing the AFE5816ZAV's performance involves selecting the right gain settings, filter configurations, and clock frequencies for your specific application. TI provides application notes and evaluation modules to help with this process.
To mitigate EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, use a common-mode choke on the analog inputs, and ensure good PCB layout practices. TI provides guidelines for EMI and RFI mitigation in the datasheet and application notes.
To troubleshoot issues with the AFE5816ZAV, start by checking the power supply, clock, and reference voltage connections. Then, verify the analog input signal quality and check for noise sources. Use TI's troubleshooting guides and application notes for further assistance.
The AFE5816ZAV has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pads on the package. TI provides thermal management guidelines in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE5816ZAV Overview

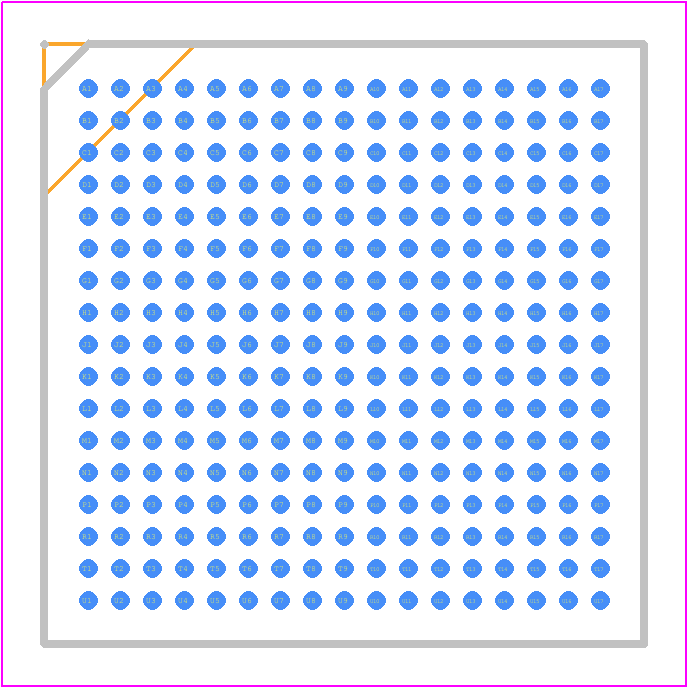

Use the download button to access the AFE5816ZAV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE58,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
