AFE5832LPZAV - Texas Instruments

Description: Analog Front End - AFE Low-power 32-ch ultrasound AFE with 18.5mW/ch power, LVDS interface, and passive CW mixer 289-NFBGA 0 to 85

Download AFE5832LPZAV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFE5832LPZAV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

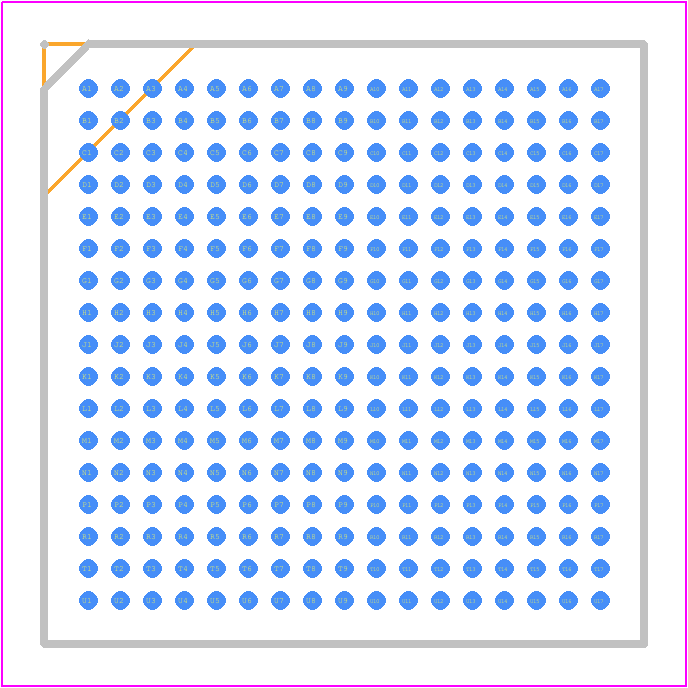

AFE5832LPZAV - Texas Instruments PCB footprint - BGA - BGA - AFE5832LPZAV*
click to zoom
3D Models
AFE5832LPZAV - Texas Instruments - 3D model - BGA - AFE5832LPZAV*
click to zoom

AFE5832LPZAV Details

  • Manufacturer Part Number:

    AFE5832LPZAV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B289

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    289

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA289,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.4 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

AFE5832LPZAV Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To optimize the ADC performance, ensure that the input signal is within the recommended range, use a low-noise power supply, and minimize digital noise coupling to the analog circuitry. Additionally, use the internal voltage reference and adjust the ADC clock frequency to optimize the signal-to-noise ratio.
  • The maximum data transfer rate of the SPI is 20 Mbps. However, the actual data transfer rate may be limited by the system's clock frequency and the specific application.
  • The PGA gain can be configured through the device's register settings. The gain can be set to 1, 2, 4, or 8, and the gain setting is dependent on the input signal range and the desired output signal level.
  • The internal voltage reference provides a stable voltage reference for the ADC, which helps to improve the accuracy and stability of the conversion results. The internal voltage reference can be enabled or disabled through the device's register settings.
